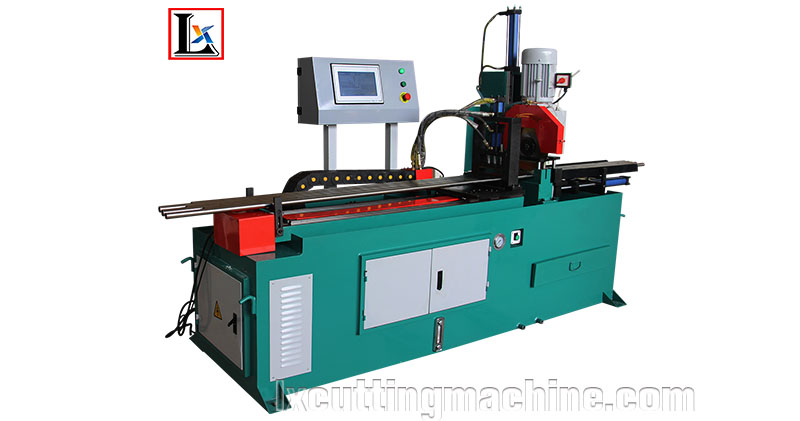

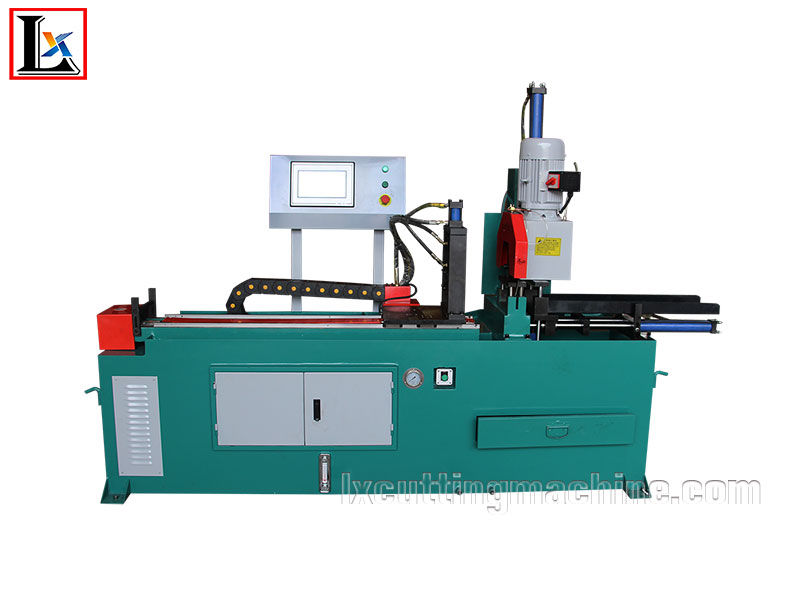

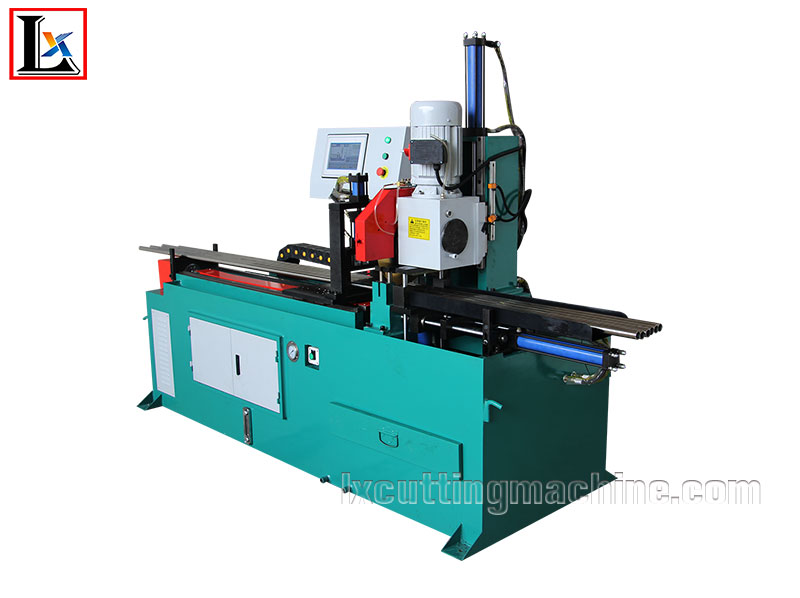

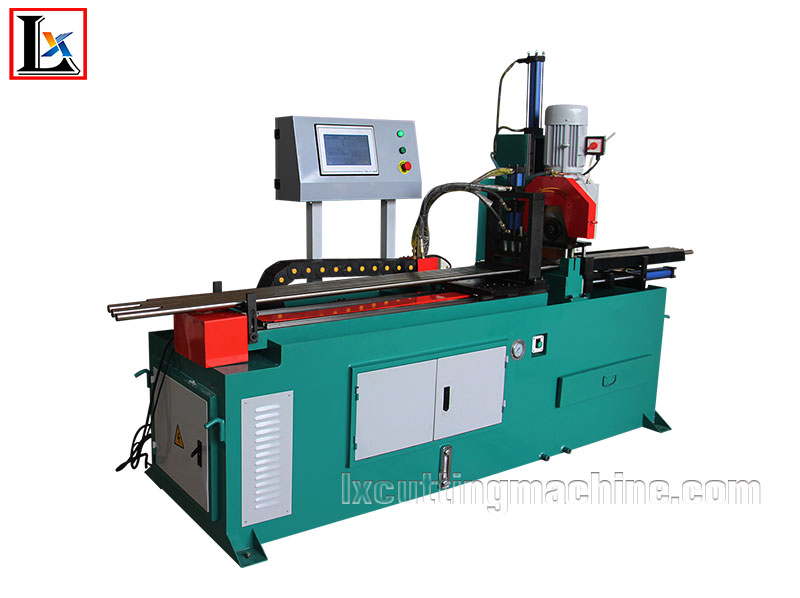

CNC HSS Pipe Circular Cold Saw Cutting Machine

LX355CNC  HSS circular cold saw Main advantage:

.Servo automatic feeding, Bundle cutting

.5 sets number of different cutting length

.Material piece end pull out function

.PLC touch screen control

. Electronic cutting counter

.No burr, high accuracy

.Right & left clamp

. Vertical slide way up-and-down sawing

ModelLX-355CNC-H
Main Drive Motor(KM)YD100L-4/2 380v 3.3/4.0KW 50HZ(Frequency)
Biade Speeds(RPM)25/50(Stainless steel)   60/120(Standard)
Saw Blade SizeDiameter(mm)HSSφ250-φ350  φ400(Special)
Pin Holes(mm)2×φ11×PCD63
Max.Clamping Capacity (mm)160(Customizable)
Oil Pressure SystemOil pressure(kg/cm2)25-35
Hyd.Oil storage capacity(L)90
Net Weight(KG)750
Machine Dimensions(L×W×H)(mm)2360×1700×660
