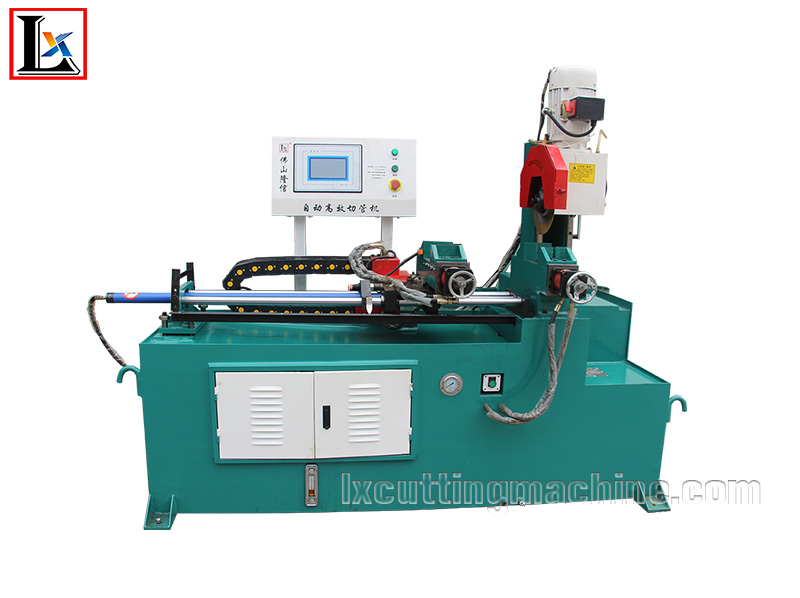

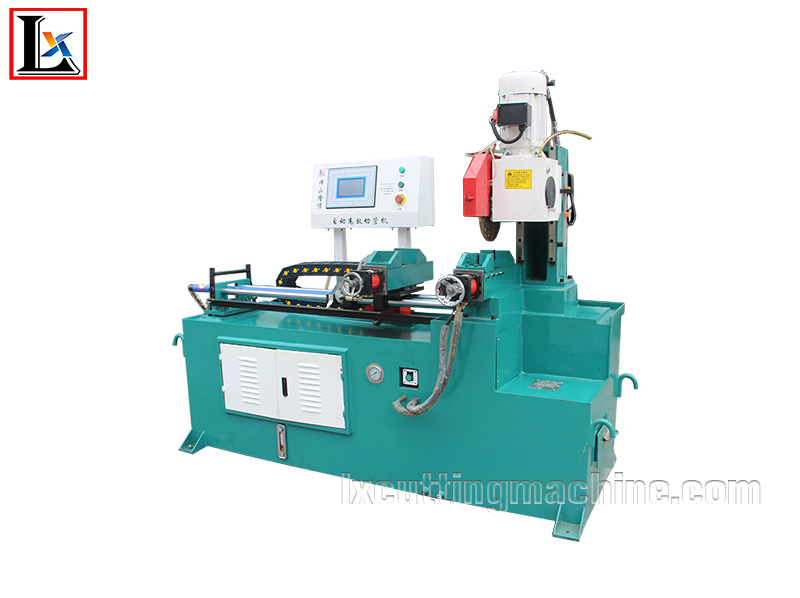

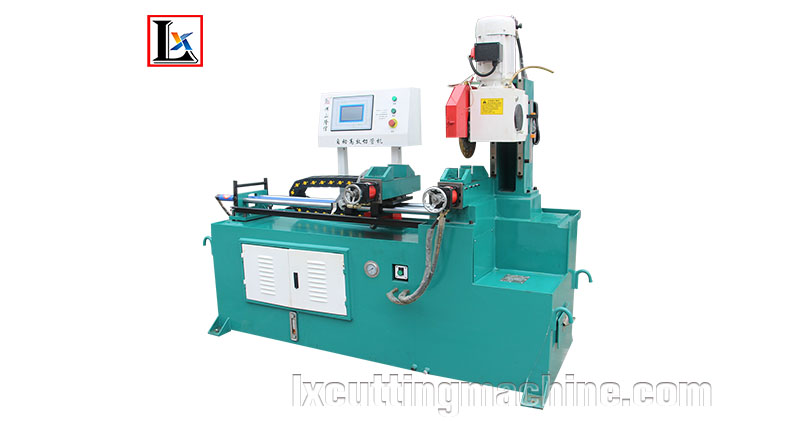

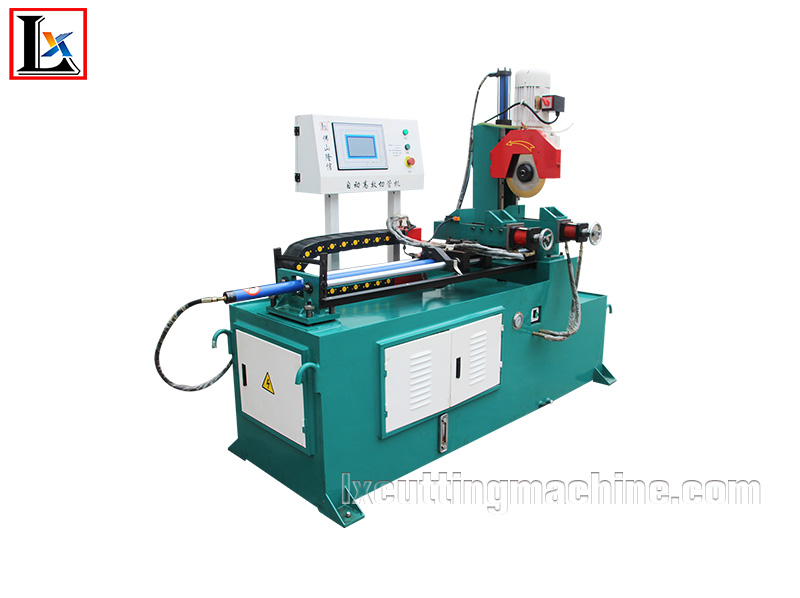

LX355NC metal sawing machine

  • Video
  • Description
  • Parameter
  • Sample
  • FAQ

LX355NC metal sawing machineLeft and right clampMain advantage:

.Hydraulic automatic feeding

.PLC touch screen control

.Electronic cutting counter

.No burr, high accuracy

.Right & left clamp

. Vertical slide way up-and-down sawing

ModelLX-355NC-H
Main Drive Motor(KM)YD100L-4/2 380v 3.3/4.0KW 50HZ(Frequency)
Biade Speeds(RPM)25/50(Stainless steel)   60/120(Standard)
Saw Blade SizeDiameter(mm)HSSφ250-φ325    φ350(Special)
Pin Holes(mm)2×φ11×PCD63
Max.Clamping Capacity (mm)160(Customizable)
Oil Pressure SystemOil pressure(kg/cm2)25-35
Hyd.Oil storage capacity(L)90
Net Weight(KG)663
Machine Dimensions(L×W×H)(mm)2400X1000X1850
