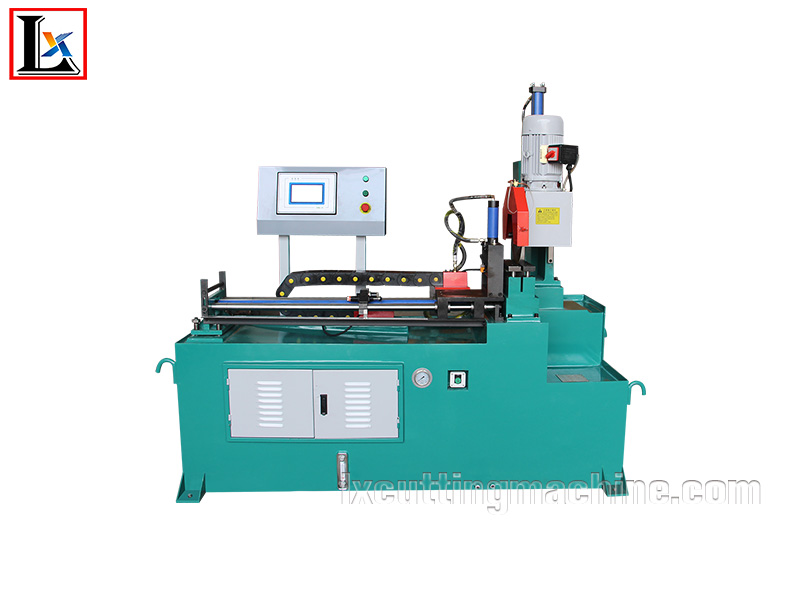

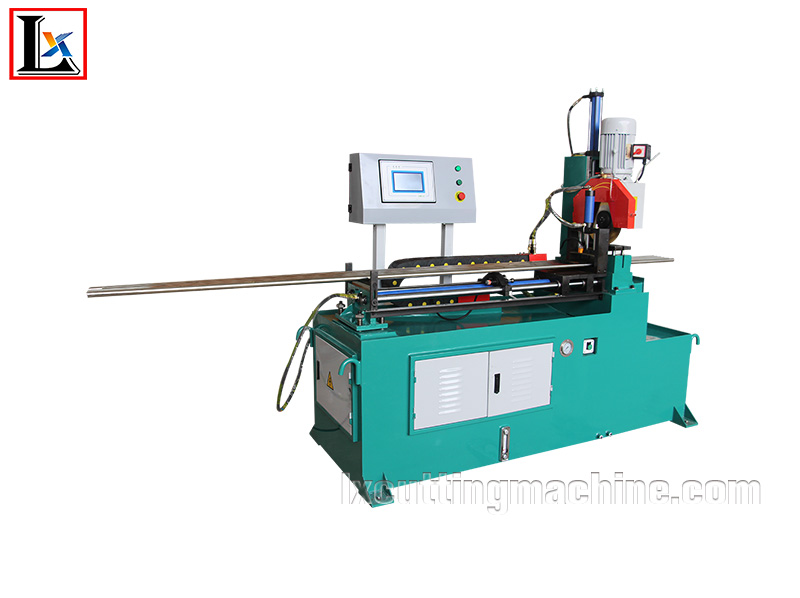

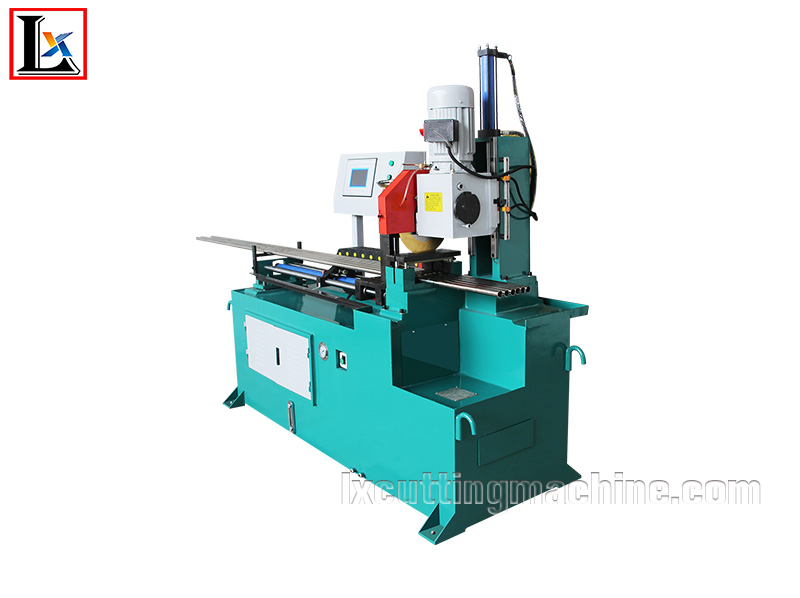

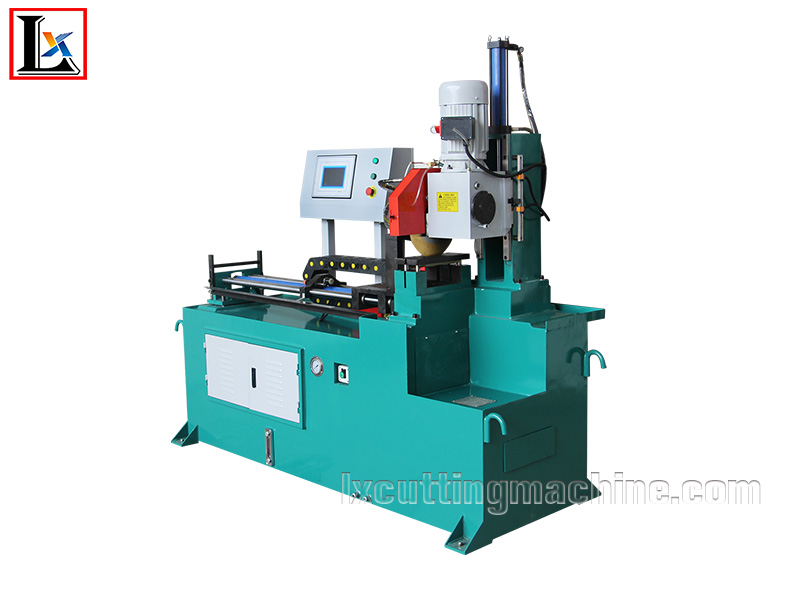

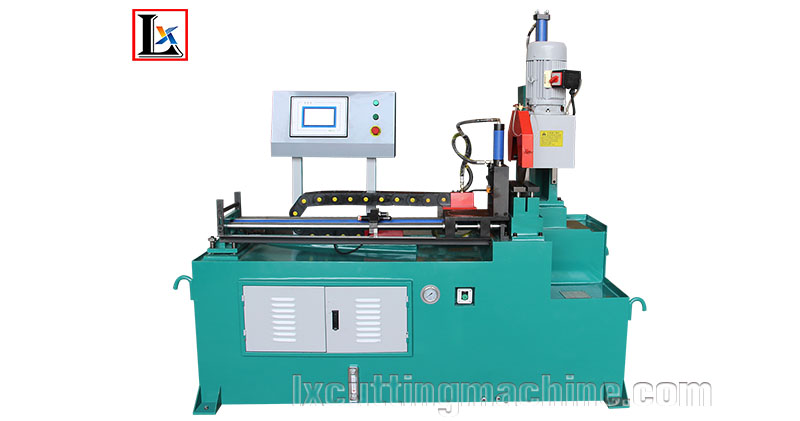

LX-355NC-H hydraulic automatic pipe cutting machine (up and down clamp)
Main advantage:
.Hydraulic automatic feeding
.PLC touch screen control
.Electronic cutting counter
.No burr, high accuracy
.Up & down clamp
. Vertical slide way sawing
| Model | LX-355NC-H | |
| Main Drive Motor(KM) | YD100L-4/2 380v 3.3/4.0KW 50HZ（Frequency） | |
| Biade Speeds(RPM) | 25/50(Stainless steel） 60/120（Standard） | |
| Saw Blade Size | Diameter(mm) | HSSφ250-φ350 φ400（Special） |
| Pin Holes(mm) | 2×φ11×PCD63 | |
| Max.Clamping Capacity (mm) | 160（Customizable） | |
| Oil Pressure System | Oil pressure(kg/cm2) | 25-35 |
| Hyd.Oil storage capacity(L) | 90 | |
| Net Weight(KG) | 653 | |
| Machine Dimensions(L×W×H)(mm) | 2000×1900×650 | |
