Stainless Steel Pipe Cutting Machine LX-ZY-180
stainless steel pipe cutting machine, circular sawing machine
Suitable pipe/tube material: steel, stainless steel, iron, copper, brass, alloy, aluminum.
Series Machine Cutting capacity:
| Model No. | LX-ZY-180 | LX-ZY-330 | LX-ZY-400 | LX-ZY-425 |
| Outside diameter | 12-32 mm | 14-51 mm | 125mm, 125x125mm | 14-140mm |
| Wall thickness | 0.8mm stainless steel | 2.0mm stainless steel | 3.0mm stainless steel | 6.0mm carbon steel |
| Cutting Length | 38-1500mm (other size can customized) | 50-1500mm (other size can customized) | 50-1500mm (other size can customized) | 50-1500mm (other size can customized) |
Main Advantages：
1. Fully automatic: auto loading + auto clamping + auto feeding + auto cutting
2. High efficiency: more than 8000 workpieces per day.
3. Burr free, no distortion，smooth , no secondary processing，no need to mill or grind it.
4. Automatic identify workpiece, head & end pieces, automatic cut off head and end pieces.
5. Automatic count, stop and replace saw blade reminding.
6. High accuracy: Control Settings + mechanical positioning, cutting accuracy ±0.05 mm.
7. Human resource saving : A worker can operate 10 machines simultaneously to ensure mass production.

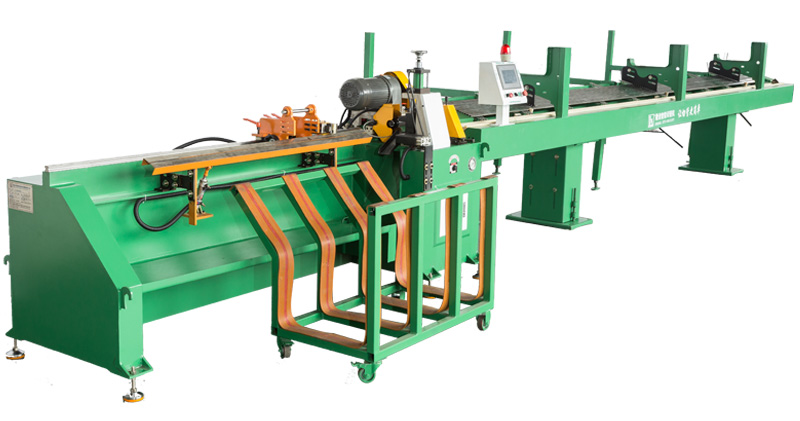

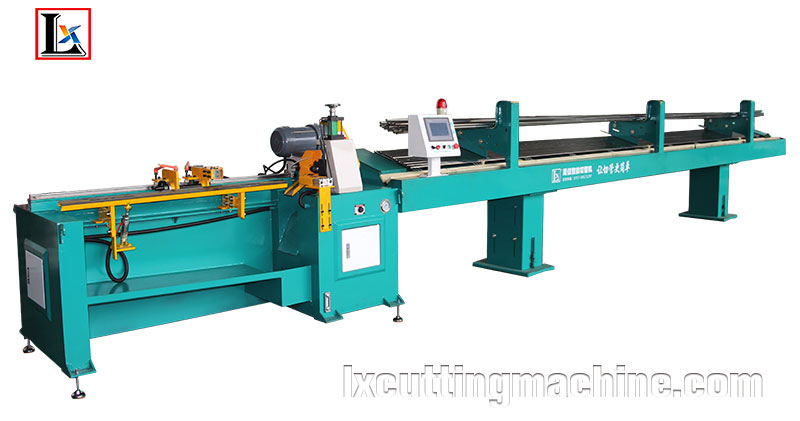

LX-ZY-180 stainless steel pipe cutting machine, circular sawing machine
Standard Equipment
Motor, electrical control system, complete cooling system, pneumatic system or hydraulic system, service tools.
Optional Equipment
Saw blade, safty cover
We have cooperated with many customers from all over the world. We cooperate with many customer from different industry, for example pipe making industry, furniture, bicycle, hardware, pipe fitting, door and window, rail fence etc.
