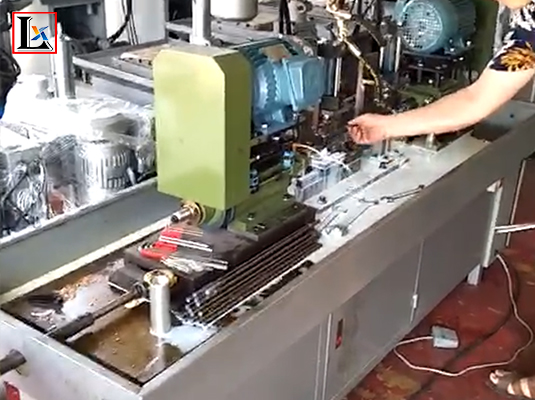

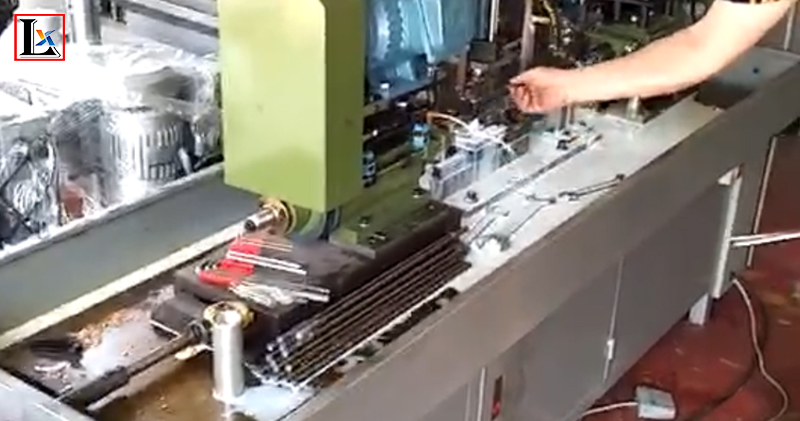

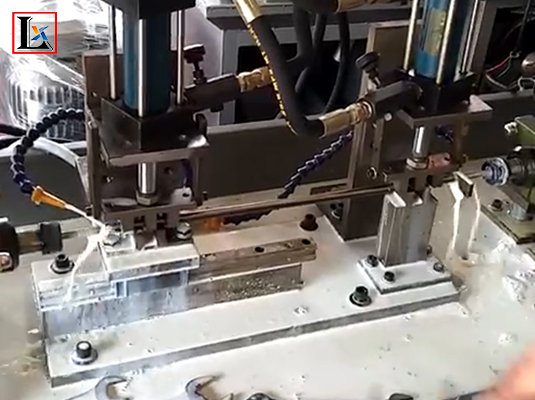

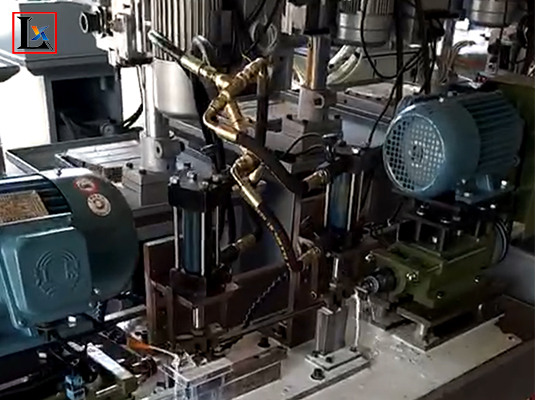

Horizontal gear tapping machine for left & right side
| Dimension of working table | 1800 x 500mm |
| OD of spindle | Ø70 |
| Taper of spindle | MT2 |
| Adjusting distance between the two ends of the spindle | 1000mm |
| Stroke of spindle | 65mm |
| Speed of spindle | 250/400/590rpm |
| Spindle motor power | 3kw |
| Tapping capacity | M16 |
| Total weight | 350kg |
| Dimensions(L x W x H) | approx. 2200 x 700 x 1000mm |
