CNC Laser Pipe Cutting Machine
4 Axis Laser Tube Cutting machines are designed to cut multiple holes on tubes of different sections, in a fully programmed automatic cycle. This process eliminates all traditional sawing, punching, grooving, grinding, deburring, drilling, lining-up and removal operations carried out on conventional machines.
Our Laser Tube Cutting Machine can freely design and enable immediately cutting of complex graphics and words, produce extremely accurate and complex laser cuts for a wide range of tubing.
4 Axis Laser Tube Cutting Benefits
Longxin Laser Technology’s 4 axis laser tube cutting machine can produce intricate and precise features on tubes of all shapes and sizes.
Laser tube cutting is a cost-effective process that produces intricate parts with small tolerances in medium to high volume production runs. It is also a fast and low-cost process for prototypes or one-off parts due to the quality of the cut and the lack of finishing operations needed. The additional benefits that 4 axis laser tube cutting, includes:
- Reduces subsequent manufacturing steps
- Produces superior edge quality
- Minimizes development costs
- Consistent, high quality production
- Laser Tube Cutting Capabilities
- Computerized tube cutting, rapid tube cutting, chipless tube cutting
- Tubes of various diameters can be produced across the entire clamping range without the need for retooling
- easy to operate with remote control
Equipped with efficient CNC software, the equipment has powerful functions, strong compatibility, and can be compatible with NC document, DXF, PLT, Al and other drawing software formats. Easy operation and maintenance, can draw any plane image on the computer, without changing mould, the product can come out immediately. Material editing software is optional, which will maximize material utilization and cutting efficiency.
The equipment adopts Swiss technology optical fiber auto-focusing laser cutting head, which can adjust the best focal length and ensure the best cutting effect of the whole board. Even if the surface of the material is uneven, the cutting quality can be guaranteed, and the cutting seam is smooth and beautiful.

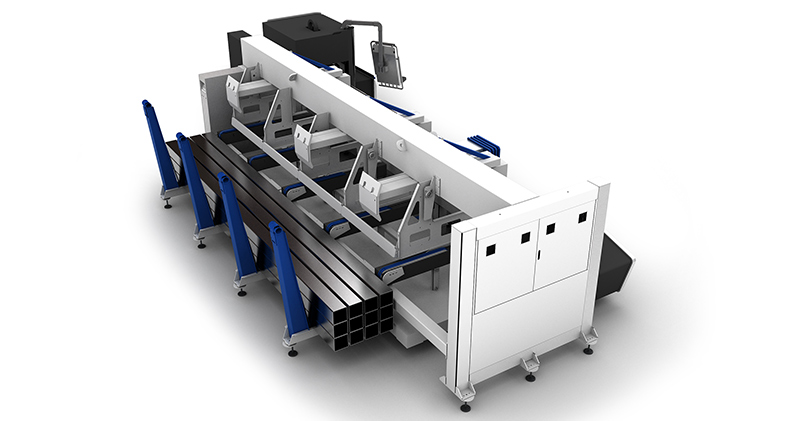

CNC Laser Pipe Cutting Machine
Main Technical Parameters
| Model | LX6018 |
| Max. Raw Material Length | 6200MM |
| Max. Output Power | 3000W/2000W/1500W/1000W |
| Cross-sections | Round / Square / Rectangular |
| Effective Round Tube Cutting Diameter | Φ25-220MM |
| Effective Square Tube Cutting Diameter | □25*25MM-□150*150MM |
| Max. Finished Part Length | 1200MM |
| Pipe Remain Length | 180MM |
| Accuracy | ±0.1MM |
| Multi-functional Cutting | Cod Mouth / Special Profiles / Mitre Cut / Rectangular / Slot / Circular / Square |
Cutting Speed of Laser ( Stainless Steel Tube, 2000W )
| Thickness ( MM ) | Laser Speed ( M/MIN ) |
| 1 | 45~48 |
| 2 | 14~15 |
| 3 | 6.5~7 |
| 4 | 3.5~4 |
| 5 | 2~2.2 |
| 6 | 1.3~1.5 |
Cutting Speed of Laser ( Carbon Steel Tube, 2000W )
| Thickness ( MM ) | Laser Speed ( M/MIN ) |
| 1 | 45~47 |
| 2 | 16~17 |
| 3 | 3.4~3.6 |
| 4 | 3.1~3.2 |
| 6 | 2~2.2 |
| 8 | 1.5~1.7 |
| 10 | 1.2~1.4 |
| 12 | 1~1.1 |
Laser Tube Cutting Industries Served
Our 4 axis laser tube cutting machine is used for a wide range of applications within numerous industries, some of which include:
Agriculture
Automotive
Construction & Sanitary
Fitness Equipment
Health
House-ware
Metal Furniture
& more Prototype Part Manufacturing Capabilities
Longxin Laser Technology has the capabilities to provide prototype machines to our customers at a competitive price with short lead times. We can work from samples, rough sketches, or finished engineering drawings. We can also provide Free Tube Sample Cutting. We will also fabricate parts per print when possible or supply a marked up copy of any necessary changes for customer approval prior to production.
Quality Control Standards
To ensure the best quality products possible we provide pressure testing of all finished parts and assemblies created by our 4 axis laser cutting system. Every product that leaves our facility is thoroughly inspected at all stages of production to the industry's highest standards for quality. At Longxin Laser Technology, we strive to meet or exceed customer requirements and expectations through a continued dedication to customer service, quality and productivity.
After-sales Service
Our company also provides free technical training. After the installation and commissioning, we will carry out technical training for the buyer's operators for at least 3-5 days at the buyer's site or at the seller's domestic training and repair center until the operators reach the basic normal use of the equipment.
Furthermore, We offer 1 year warranty, starts from the issue date of bill of lading. The warranty time for laser generator, laser head is 24 months. And we offer lifetime technical supports. After the expiration of the warranty, extensive software and hardware support is provided, and free upgrades are available for life.
Our engineers offer 24 hours online service and free technical support. We are a professional pipe processing equipment manufacturer with 16 years experience. We have professional R&D department and after-sales department to offer you the best solution and technical support.
