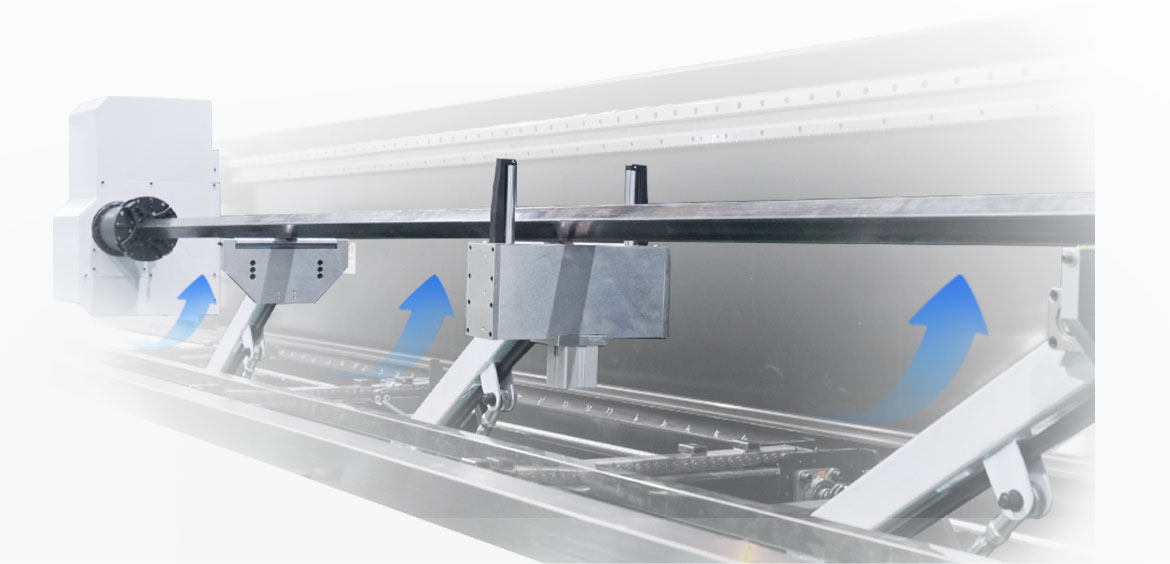

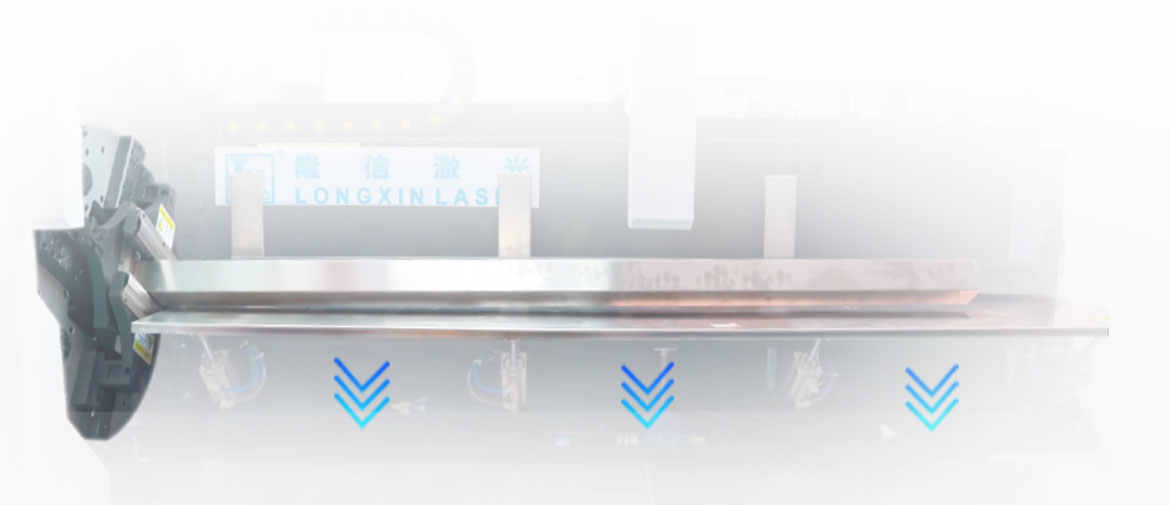

Standard equipped with 1.2 meters flap front support drop function, the pipe plays the role of front support material, receiving material, not only to improve the processing accuracy and stability of the pipe.
It also avoids mechanical injury to the operator due to the free fall of the pipe when unloading.
The standard servo-following support function realizes real-time support for the outer contour of the pipe during the machining process, thus improving the machining accuracy and stability of the pipe.

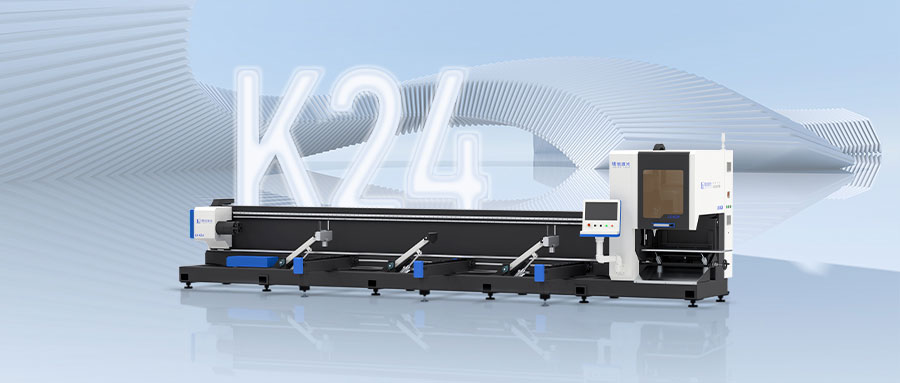

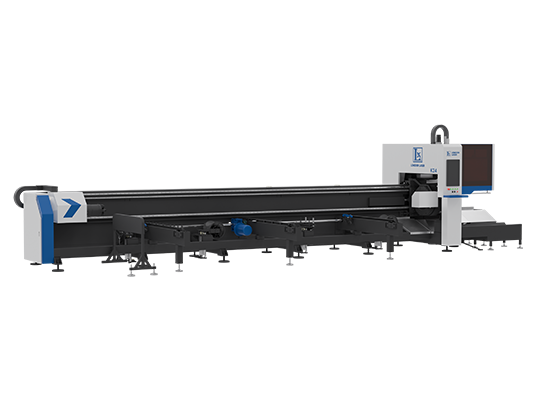

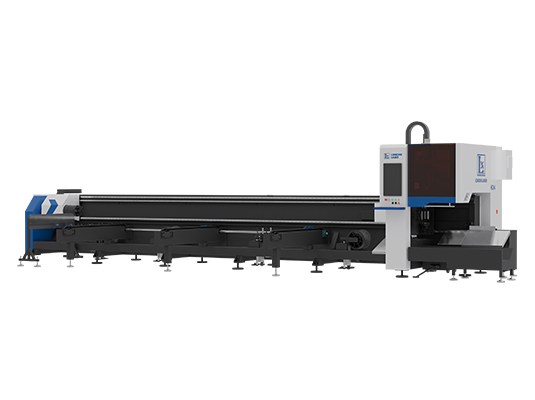

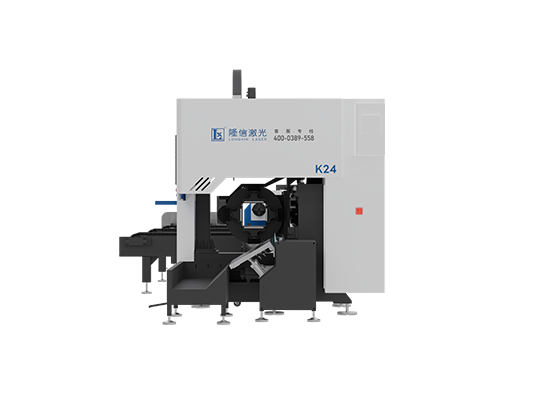

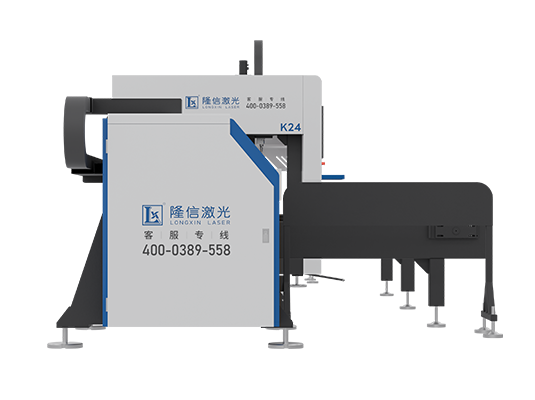

| Model | LX-K24 |
| Power(W) | 3000W |
| Cutting Range(mm) | Round tube: 20-240mm， Square tube :20×20mm -240×240mm |
| Length(mm) | ≤6500 |
| Machine Size (mm) | 9800×2500×2550mm |
| Machine Weigh(T) | ≈5.5 |
Max. Acceleration(G) | 1.0G |
| Industry | Stainless steel, nickel-titanium alloy, titanium, high-temperature alloy, lithium, magnesium, aluminum, copper, iron and other metal materials |

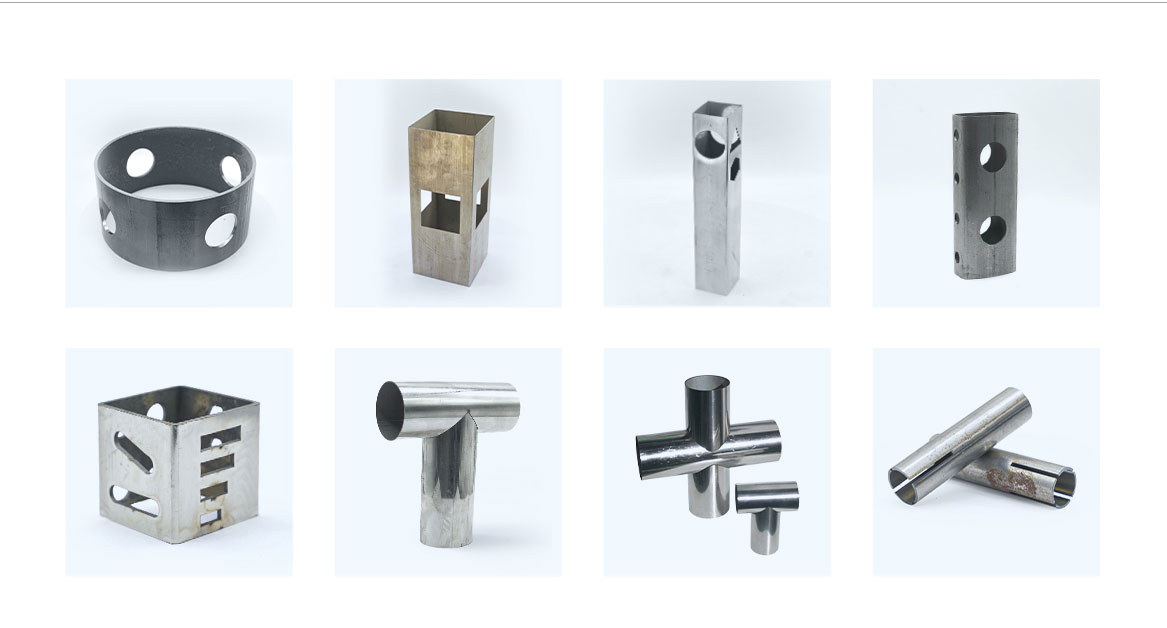

A: The LX-K24 processes standard carbon steel, stainless steel, and aluminum alloy tubes, including square, round, and obround tubes
A: The LX-K24 supports a maximum single-tube weight of 300 kg, with a linear material weight limit of $\le 50\text{ kg/m}$
A: Yes, Lonxlaser offers an optional semi-automatic loading system (up to 5 tubes per load, matching $\emptyset$15-230mm sizes) and fully automatic loading/unloading configurations depending on your factory automation requirements
Founded in 2008, Lonxlaser is a world-class manufacturer of intelligent laser equipment with 3 major manufacturing bases, over 230 patents, and products exported to over 50 countries
