Cambodia’s furniture manufacturing sector has developed rapidly into an international export hub, driven by the global demand for minimalist metal furniture, ergonomic office setups, and outdoor aluminum leisure sets. As design complexity increases, traditional mechanical sawing and punch presses can no longer meet the tight tolerances and surface-finish standards required for high-volume export orders.

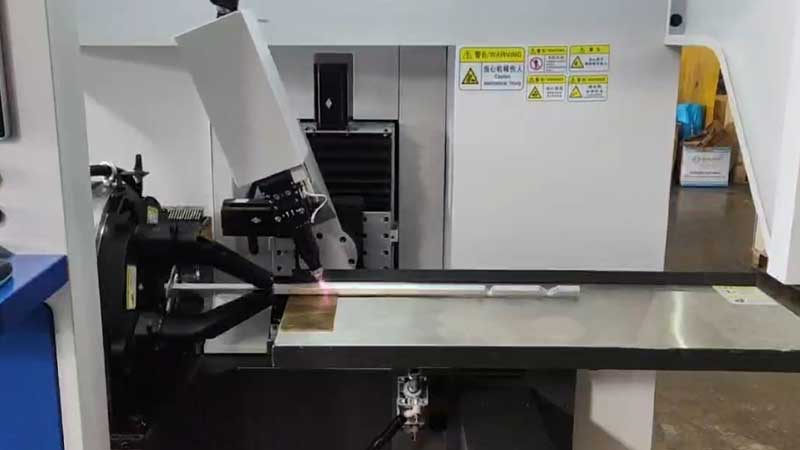

A premier furniture manufacturer in Phnom Penh recently integrated the T12 aluminum tube laser cutting machine into their automated fabrication line to solve chronic challenges in thin-walled profile processing.
Client Profile & Material Requirements
The client manufactures lightweight, powder-coated aluminum furniture frames requiring precise miter cuts, interlocking notches, and screw-mounting holes across diverse extruded profiles.
Industry: Metal & Mixed-Material Furniture Manufacturing
Location: Phnom Penh, Cambodia
Processed Materials: Aluminum Tubing
Key Specifications:
Square profile: 16 × 16 × 1.0 mm
Square profile: 25 × 25 × 1.0 mm
Rectangular profile: 20 × 50 × 1.0 mm
Core Fabrication Challenges
Processing ultra-thin aluminum tubes (1.0 mm wall thickness) with conventional workshop tools introduced significant production bottlenecks:
Mechanical Deformation: Circular cold saws and heavy pneumatic clamps consistently crushed the 1.0 mm tube walls, causing high scrap rates during batch runs.
Secondary Labor Bottlenecks: Saw cuts produced internal burrs and chips that required dedicated manual deburring before downstream powder coating.
Thermal Heat-Affected Zone (HAZ): Aluminum's high thermal conductivity led to melted edges and inconsistent miter angles, creating gaps during TIG and laser welding.
How the T12 Aluminum Tube Laser Cutting Machine Solved the Problem
The T12 model was configured specifically for high-speed, small-to-medium tube geometries. By replacing manual multi-step operations with a single-pass laser process, the client achieved:

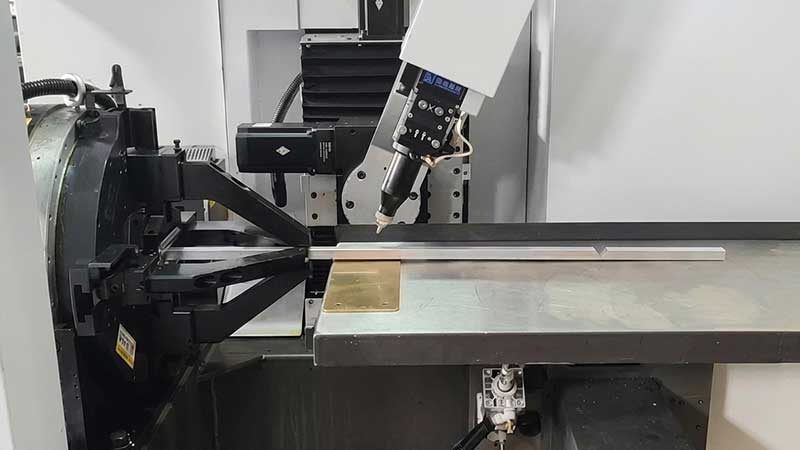

Smart Pressure-Regulated Chucking: The T12 features fully pneumatic, self-centering chucks with fine-tuned clamping pressure settings, ensuring rigid stability without deforming thin 16×16 mm or 25×25 mm square tubes.
Burr-Free Nitrogen Cutting: Utilizing high-pressure nitrogen cutting parameters eliminates surface dross and oxidation, delivering ready-to-weld edge quality straight off the machine.
All-in-One Geometry Processing: Notching, beveling, slotting, and cut-to-length tasks on 20×50 mm rectangular tubes are executed in continuous 3D cutting sequences without workpiece repositioning.
Processing Parameter Matrix
| Tube Geometry | Dimensions (mm) | Wall Thickness | Material Grade | Key Application |
| Square Tube | 16 × 16 | 1.0 mm | Aluminum 6063 | Backrest spindles, internal grilles |
| Square Tube | 25 × 25 | 1.0 mm | Aluminum 6063 | Table legs, chair mainframes |
| Rectangular Tube | 20 × 50 | 1.0 mm | Aluminum 6063 | Outer load-bearing frames |
Measurable Production ROI
Output Efficiency: Replaced four manual cutting/drilling stations with one operator-run T12 machine, increasing daily output by over 300%.
Zero Scrap Rates: Clamping-related deformation on 1.0 mm profiles dropped from 7.5% to virtually 0%.
Seamless Assembly: Micron-level cutting repeatability improved weld fit-up accuracy, cutting pre-weld fixture adjustments by 65%.
Empower Your Metal Furniture Manufacturing
Deploying a dedicated aluminum tube laser cutting machine like the T12 allows manufacturers to achieve higher design flexibility, cleaner cuts, and lower unit costs. Contact our technical team today to request a cycle-time calculation or test-cut video for your custom aluminum profile specifications.
