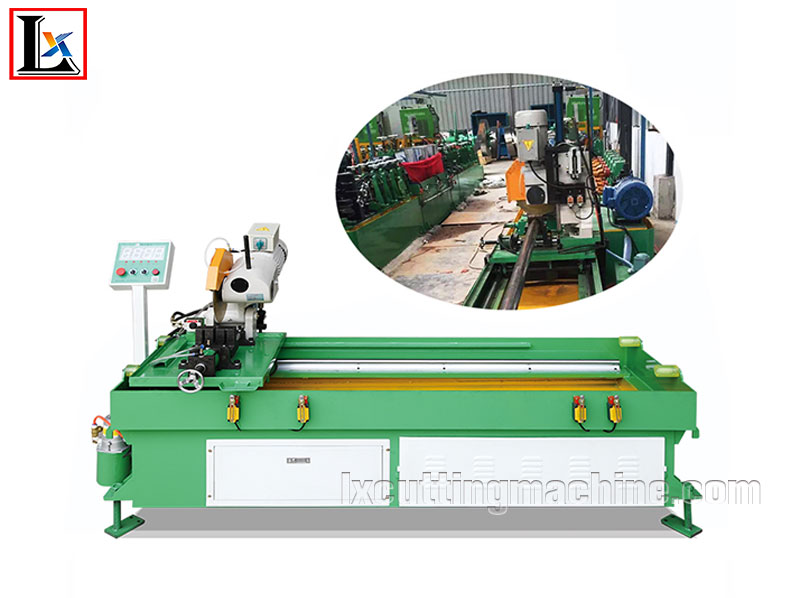

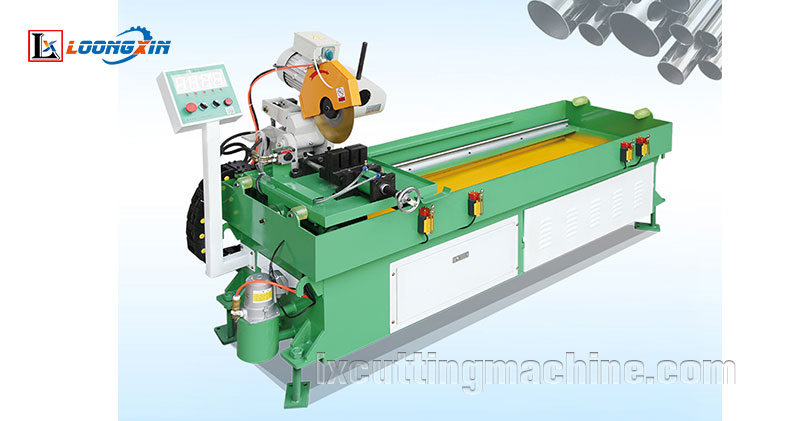

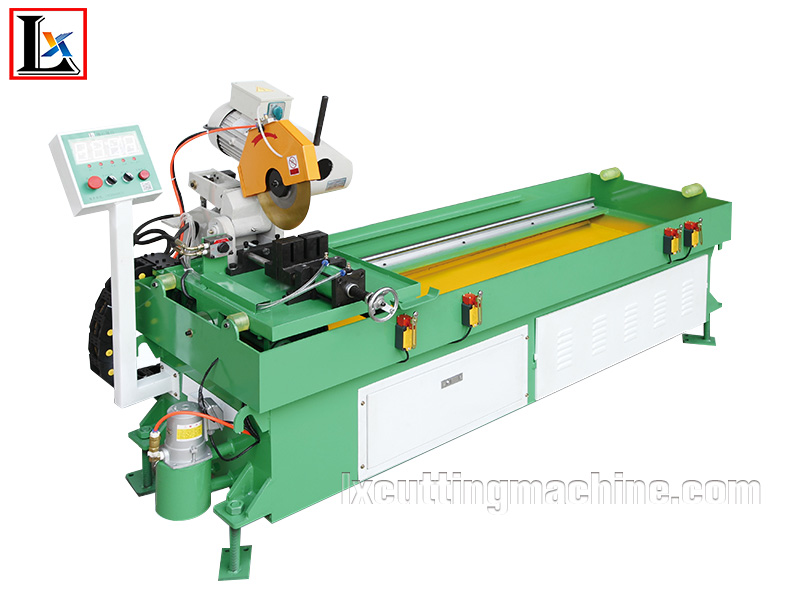

AC315 Welding Pipe Line Cutting Machine Generation Machine Features:
1. Cooling system: cooling water pass 3 layer filter
2. Frequency conversion enter. Cutting platform in indirect action is use frequency conversion control to adjust speed, make sure that length cutting tolerance is within 2 mm.
3. All motor works only when working start, save electricity.
4. Hand wheel type return oil cylinder. Clip pipe with a carriage return oil cylinder is plate, compared to common operation is more convenient, only need to turn the hand wheel accordingly.
5. Electric counter.
6. Hydraulic drive, variable frequency return.
| Model No. | AC315 Welding Pipe Line Cutting Machine |
| Machine Size (L x W x H) | 2.2mx0.7mx1.1m |
| Advantage | hydraulic drive, frequency conversion carriage return |
| Cutting range | φ≤38 And same size rectangular pipe |
| Cutting ability | Stainless steel ≤3.0mm,Carbon steel≤5.0mm |
| Saw blade size | φ≤325mm |
| Voltage | AC380V 50HZ |
| Power | 5.6KW |
