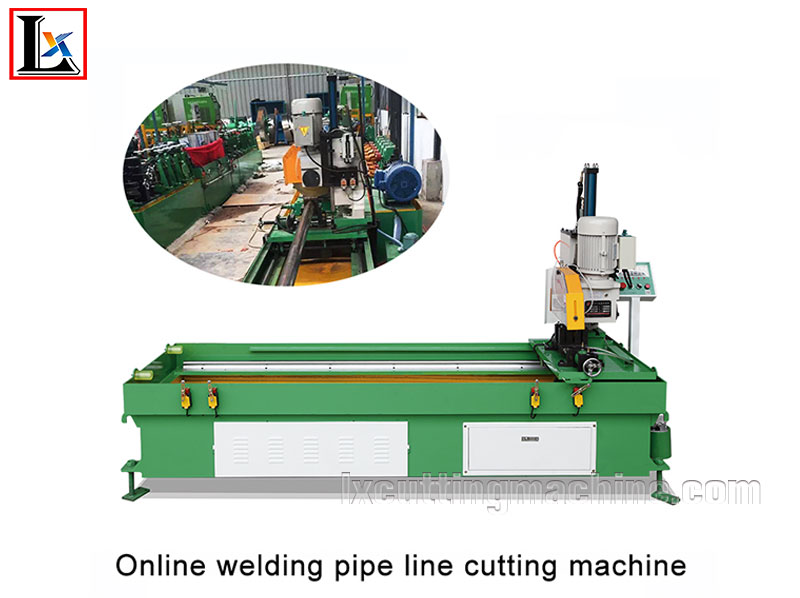

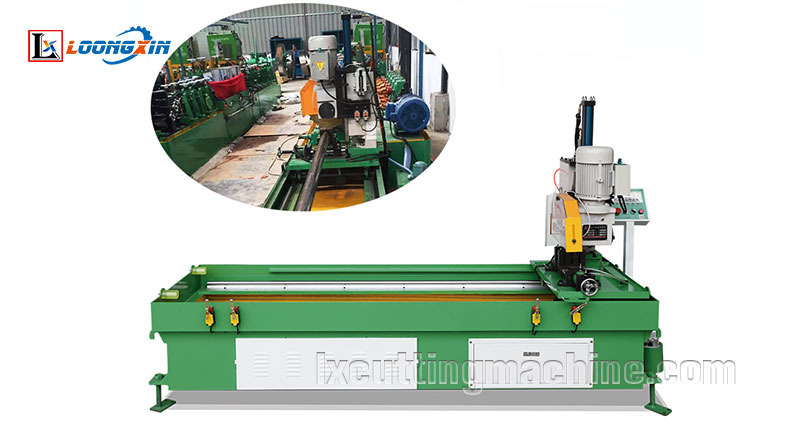

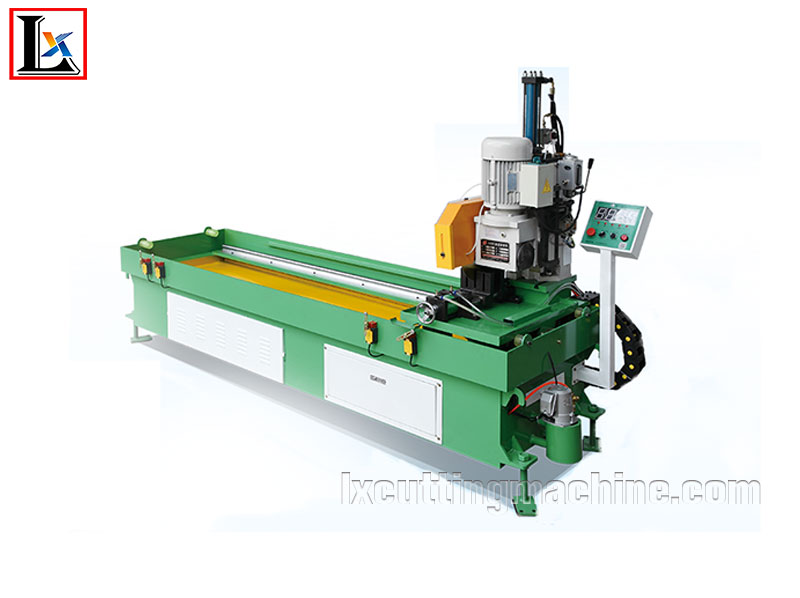

AC355 On-line Cutting Machine Generation Machine Features:
1. Cooling system: cooling water pass 3 layer filter
2. Frequency conversion enter. Cutting platform in indirect action is use frequency conversion control to adjust speed, make sure that length cutting tolerance is within 2 mm.
3. All motor works only when working start, save electricity.
4. Hand wheel type return oil cylinder. Clip pipe with a carriage return oil cylinder is plate, compared to common operation is more convenient, only need to turn the hand wheel accordingly.
5. Host angle can be adjusted according to the different profiles.
6. Electric counter.
7. Hydraulic drive, variable frequency return.
| Model No. | AC355 On-line Cutting Machine |
| Machine Size (LxWxH) | 2.8mx0.8mx1.6m |
| Advantage | hydraulic drive, frequency conversion carriage return |
| Cutting range | φ≤89 And same size rectangular pipe |
| Cutting ability | Stainless steel ≤3.0mm,Carbon steel≤7.0mm |
| Saw blade size | φ≤400mm |
| Voltage | AC380V 50HZ |
| Power | 6.1KW |
