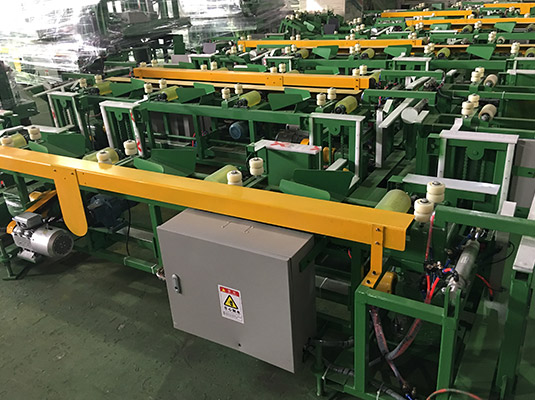

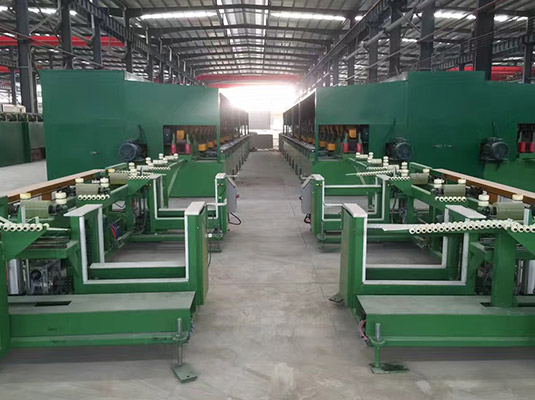

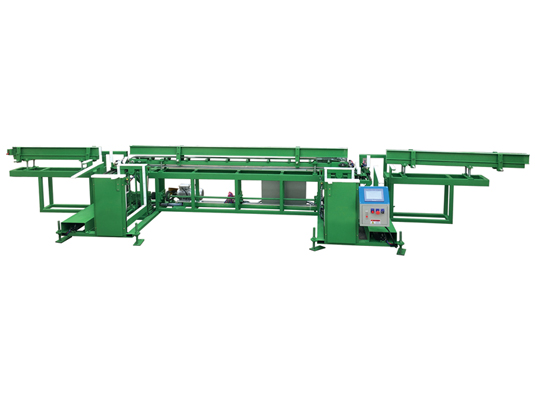

Fully Automatic Round Pipe non-scratching unloader for polishing machine
Advantages:
1. fully automatic, not require for any specific operator to operate.
2. adopt nylon and woolen thick cloth for any contact parts to protection.
3. tailor made dimension of occupation in collaborating to customer’s polishing machine, no extra and additional space required for accommodating it, suitable for both new and old factory space.
4. Created by researching, manufacturing, tailor integration, customers may pragmatically achieve an automatic production system and thus to elevate company’s quality outcome, cost down, marketing brand name and increase competitiveness.
Fully Automatic Round Pipe non-scratching unloader for polishing machine
Parameter
| Dimension | Length: 7.0M, Width: 1.4M, Height: 0.8M |
| Pipe Material | Φ10~Φ100MM |
| Required air | >0.4Mpa |
| Capacity | 380V, 3 phase, 1500W motor 2 sets |
| Power consumption | 1.93 kw/h (based at 60% usage) |
| Electricals | Solenoid valve 4 Nos. MITSUBISHI brand PLC with touch screen NC control set to automatic Functioned with number counting Components are all imported brand |
