Fully Automatic Square Pipe non-scratching unloader for polishing machine


Advantages:

1. fully automatic, not require for any specific operator to operate.

2. adopt nylon and woolen thick cloth for any contact parts to protection.

3. tailor made dimension of occupation in collaborating to customer’s polishing machine, no extra and additional space required for accommodating it, suitable for both new and old factory space.

4. Created by researching, manufacturing, tailor integration, customers may pragmatically achieve an automatic production system and thus to elevate company’s quality outcome, cost down, marketing brand name and increase competitiveness.

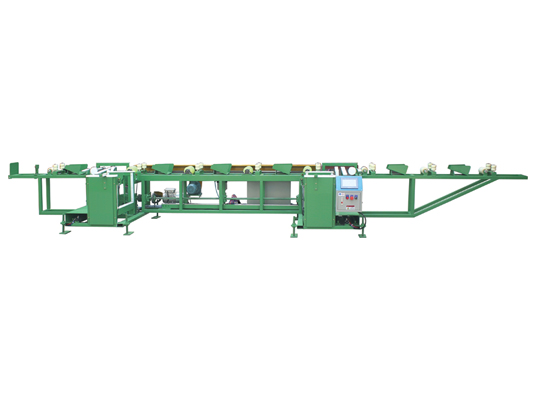

Fully Automatic Square Pipe non-scratching unloader for polishing machine


Parameter

DimensionLength: 7.0M,  Width: 1.4M,  Height: 0.8M
Pipe Material□10*10~100*100MM
Required air>0.4Mpa
Capacity380V, 3 phase, 1500W motor 2 sets
Power consumption1.93 kw/h (based at 60% usage)
Electricals

Solenoid valve 4 Nos.

MITSUBISHI brand PLC with touch screen

NC control set to automatic

Functioned with number counting

Components are all imported brand
