No. | Item | Parameter |
1 | Maximum tubes per loading | ≤10 |
2 | Tube size | Round tubes: φ0.3–12 mm (optional φ0.7–20 mm large chuck) |
3 | Machine weight | ≈100KG |
4 | Dimensions | ≈2500mm*600mm*780mm |
5 | Overall dimensions of host and loading system | ≈5000*2000*2100mm |

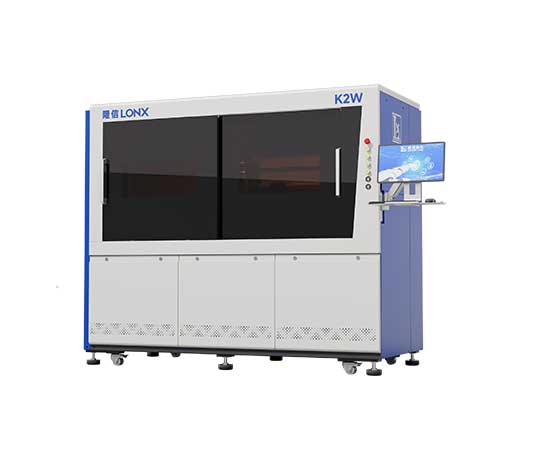

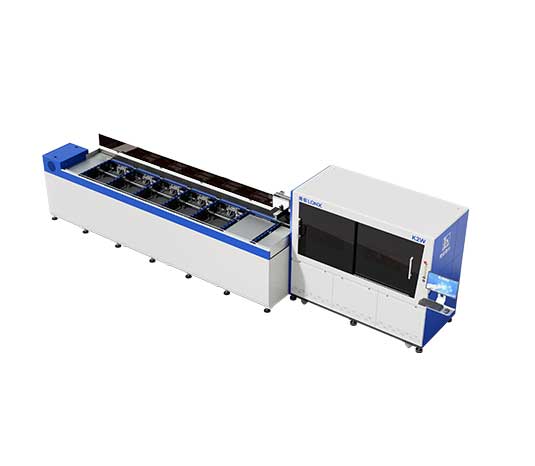

The LX-K2W is a high-precision laser tube cutting machine designed for processing small-diameter metal tubes. It is widely used in medical devices, automotive components, instrumentation, and precision manufacturing industries.
The standard processing range is round tubes from Ø0.3 mm to Ø12 mm. An optional large chuck allows processing of tubes from Ø0.7 mm to Ø20 mm.
The LX-K2W can cut various metal tubes, including stainless steel round tubes, aluminum alloy tubes, and other precision metal tubing commonly used in medical and industrial applications.
As a professional tube cutting machine for medical industry applications, the LX-K2W provides ultra-high cutting accuracy, minimal tube deformation, and clean cutting edges, making it ideal for medical instruments, surgical tools, and precision tubing.
The machine features a front water-spray or air-jet slag removal system that effectively prevents molten slag from adhering to the inner wall of the tube. This helps achieve cleaner cuts, reduces post-processing, and improves overall product quality.
The granite worktable offers excellent rigidity, vibration resistance, and thermal stability. This ensures higher cutting precision, greater machine stability, and long-term reliability.
Yes. The LX-K2W is specifically designed for high-precision cutting of thin-wall stainless steel tubes and other small-diameter tubes without compromising cutting quality.
The machine is widely used in:
Medical Device Manufacturing
Automotive Parts Production
Instrumentation Industry
Precision Engineering
Laser Processing Service Centers
Yes. The advanced CNC control system and intelligent nesting software improve production efficiency and support automated tube processing workflows.
The LX-K2W combines high-speed operation, exceptional cutting precision, low material waste, and reliable performance. It is an ideal solution for manufacturers looking for a precision laser tube cutting machine for small-diameter tube applications.
