The Ultimate Intelligent Solution for Metal Pipe & Tube Processing

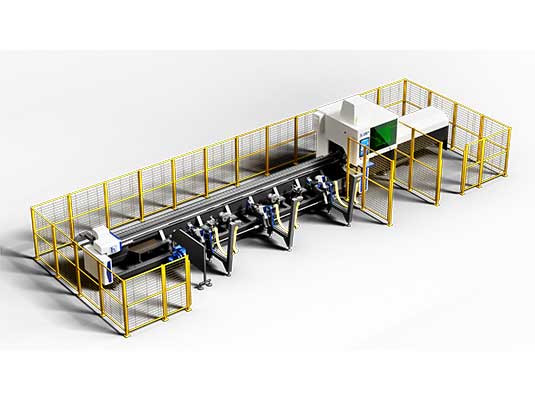

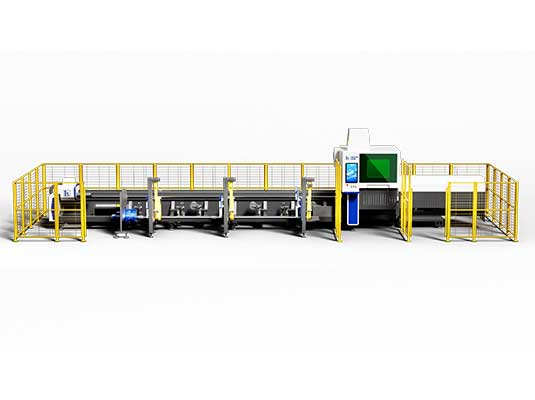

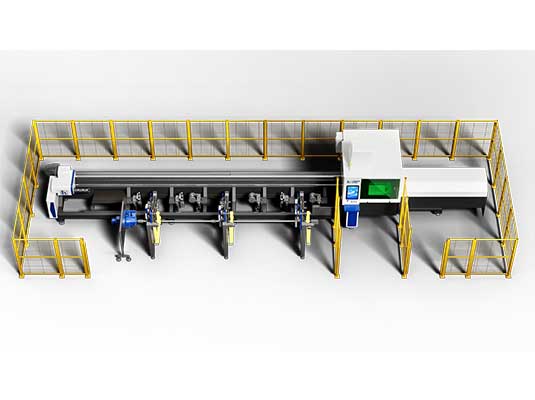

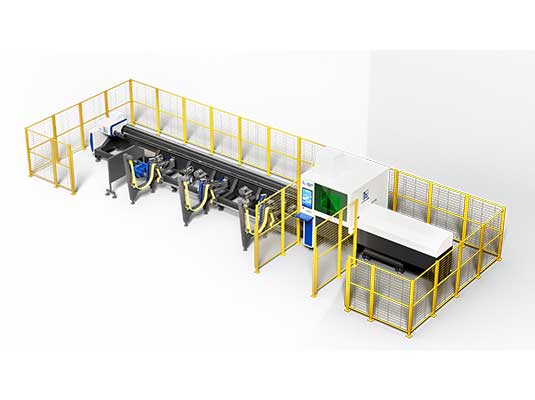

Engineered by Longxin Laser, the LX-K12-6 Tube Laser Cutting Machine integrates cutting-edge fiber laser technology, dual-chuck zero-tailing mechanism, and advanced BOCHU CNC control to maximize material utilization, accuracy, and throughput.
Dual-Chuck Zero-Tail Cutting (Zero Material Waste) Features a high-precision dual-chuck system that enables zero-tail cutting on the end of the tube. Maximize your material yield and drastically lower raw material costs.
High-Speed Small Tube Processing Specially optimized for round tubes (Ø15–120 mm) and square tubes (15×15–120×120 mm), delivering up to 1.5G acceleration and rotation speeds up to 150 r/min.
Optional Full-Servo Automatic Loading System Upgradable to intelligent servo-based material separation and loading to minimize manual intervention and achieve 24/7 continuous industrial production.
Autonomous In-House Bed & Frame Manufacturing Built on Longxin's self-manufactured L-type steel bed with high-temperature annealing and secondary aging, offering superior rigidity, vibration resistance, and long-term stability.
Customized automation options to build an intelligent, unmanned tube laser processing line:
Semi-Automatic Loading System: Max load ≤ 1.5T; Tube length 4.5m–6.5m; Max 6 tubes per load (Ø15–120mm).
Fully Automatic Loading System: Max load ≤ 1.5T; Tube length 4.5m–6.5m; Automatic bundled feeding.
Full-Servo Automatic Loading System: Servo-controlled intelligent separation, higher speed, and seamless integration with follow-up unloading.
Slag-Free Cutting Function (Optional): Prevents slag adhesion on inner pipe walls. Applicable to Ø30–80mm round tubes and 30×30–80×80mm square tubes (Finished length ≤ 800mm).
Basic Unloading System (Standard): Compact pneumatic unloading unit.
Follow-Up Unloading System (Optional): Synchronized support system ensuring long tube cutting precision without dropping or shaking.
LX-K12-6 CORE ARCHITECTURE:
120 Full-Stroke Pneumatic Chuck: Built-in cylinder, 4-jaw guide, 150 r/min continuous rotation.
Auto-Focus Laser Cutting Head: Non-contact capacitive tracking, maintains 0.2mm gap.
Heavy-Duty Machine Bed: In-house welded L-type frame, high-temperature annealed, aged for stability.
Precision Motion Drive: Inovance Servo motors, Faston precision helical racks, TBI ground ball screws.
Dual-Temp Intelligent Chiller: Independent water circuits for source and optics to prevent condensation.
BOCHU TubePro & Tubest Nesting Software: Professional tube cutting CNC system with contour inspection, automatic edge finding, center calibration, leapfrog mode, multi-stage piercing, weld-seam compensation, and fly cutting.
My Machine Tool (IoT Smart System): Real-time production monitoring via cloud analytics. Track daily operating hours, laser-on time, part count, machine alarms, and process parameters remotely.
The LX-K12-6 tube laser cutter is widely utilized in high-precision, high-volume production industries:
Hardware & Furniture: Steel tables, chairs, display racks, home organization.
Calibration & Measuring Tools: High-precision tubular tools and fixtures.
Sports & Fitness Equipment: Bicycle frames, gym equipment, electric scooters.
Construction & Machinery: Guardrails, structural scaffolding, pipes.
Laser Job-Shop Services: Subcontract metal tube processing.
Proven Expertise: Founded in 2008, National High-Tech Enterprise & "Little Giant" Enterprise with 230+ patents.
Complete In-House Manufacturing: Machine bed, chuck, and key components built in-house, cutting costs by 30%-50% while maintaining defect rates below 0.5%.
Global Service Network: 40+ domestic service stations, 10 foreign offices, exporting to 60+ countries including USA, Germany, UK, India, and Singapore.
Full-Cycle Customer Support: 1-Year full warranty, lifetime technical support, 24-hour rapid response, free software upgrades.
Q1: What types of tubes can the LX-K12-6 cut? The LX-K12-6 handles round tubes (Ø15-120mm), square tubes (15x15 to 120x120mm), obround/oval tubes, and structural steel profiles like channel steel, angle iron, and I-beams.
Q2: How does zero-tailing work on this laser tube cutting machine? During tail-end processing, the front chuck avoids interference and moves to pull the tube from the rear chuck, allowing the laser head to cut close to the edge with minimal scrap (~20mm).
Q3: What gas supply is required for laser tube cutting? The machine supports Oxygen (O₂, purity ≥ 99.5%) for thick carbon steel, Nitrogen (N₂, purity ≥ 99.7%) for stainless steel and aluminum, and dry oil-free Compressed Air (>1.5 MPa) for economical high-speed cutting.
Ready to upgrade your tube cutting line? Contact our engineering team for customized solutions and pricing.
