12m Heavy-Duty H-Beam Laser Cutting: A Success Story from a Saudi Arabian Steel Structure Factory

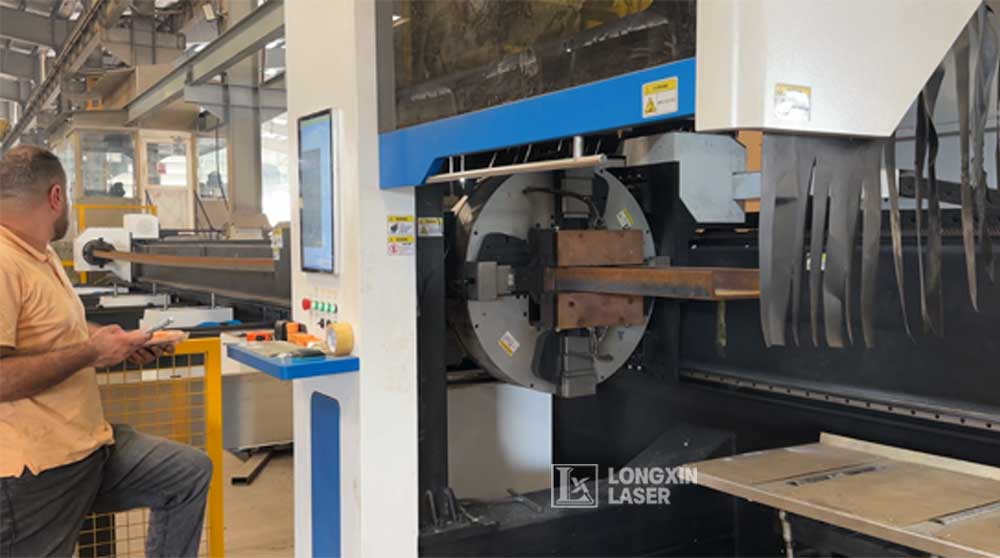

The steel construction industry in Saudi Arabia is experiencing unprecedented growth. To meet the demands of "Vision 2030," efficiency and precision in structural steel fabrication are paramount. Recently, a prominent Saudi steel structure factory partnered with us to upgrade their production line with the T35 Ultra-Long Heavy-Duty Laser Pipe Cutting Machine
The client faced a bottleneck in processing 300×300×10×14mm H-beams. Traditional methods like band sawing and manual drilling were:
Too Slow: Multiple steps for cutting and hole making.
Inaccurate: Difficulty in maintaining tolerance over long spans.
Material Handling Issues: Moving 12-meter heavy beams manually was dangerous and inefficient.
The Solution: The T35 Laser Powerhouse
To solve these challenges, we customized the T35 Heavy-Duty Model for their facility.
1. 12m Loading & 12m Unloading
Standard machines couldn't handle the scale. Our T35 features a fully automated 12-meter loading and 12-meter unloading system, ensuring the entire 12m H-beam is supported and processed in one continuous cycle without manual intervention.
2. Specialized H-Beam Processing
Cutting a 300x300mm H-beam with a 14mm flange requires immense stability and power. The T35 is equipped with specialized software algorithms to handle the corners and thickness transitions of structural steel perfectly.
3. All-in-One Fabrication
What used to require three machines (sawing, drilling, and milling) is now done on one T35 machine. It cuts to length, drills bolt holes, and cuts complex notches in seconds.
Technical Specifications of T35
Machine Model: T35 (Heavy-duty Series)
Max Beam Size: 300mm x 300mm (H-beam, Channel, Angle Steel)
Loading Capacity: 12 Meters Automatic Loading
Unloading Capacity: 12 Meters Automatic Unloading
Material Thickness: Up to 14mm Flange thickness
Application: Infrastructure, Skyscrapers, and Industrial Plants.
Results & ROI
Since the installation in Saudi Arabia, the client has reported:
300% Increase in Productivity: Jobs that took a day now take 2 hours.

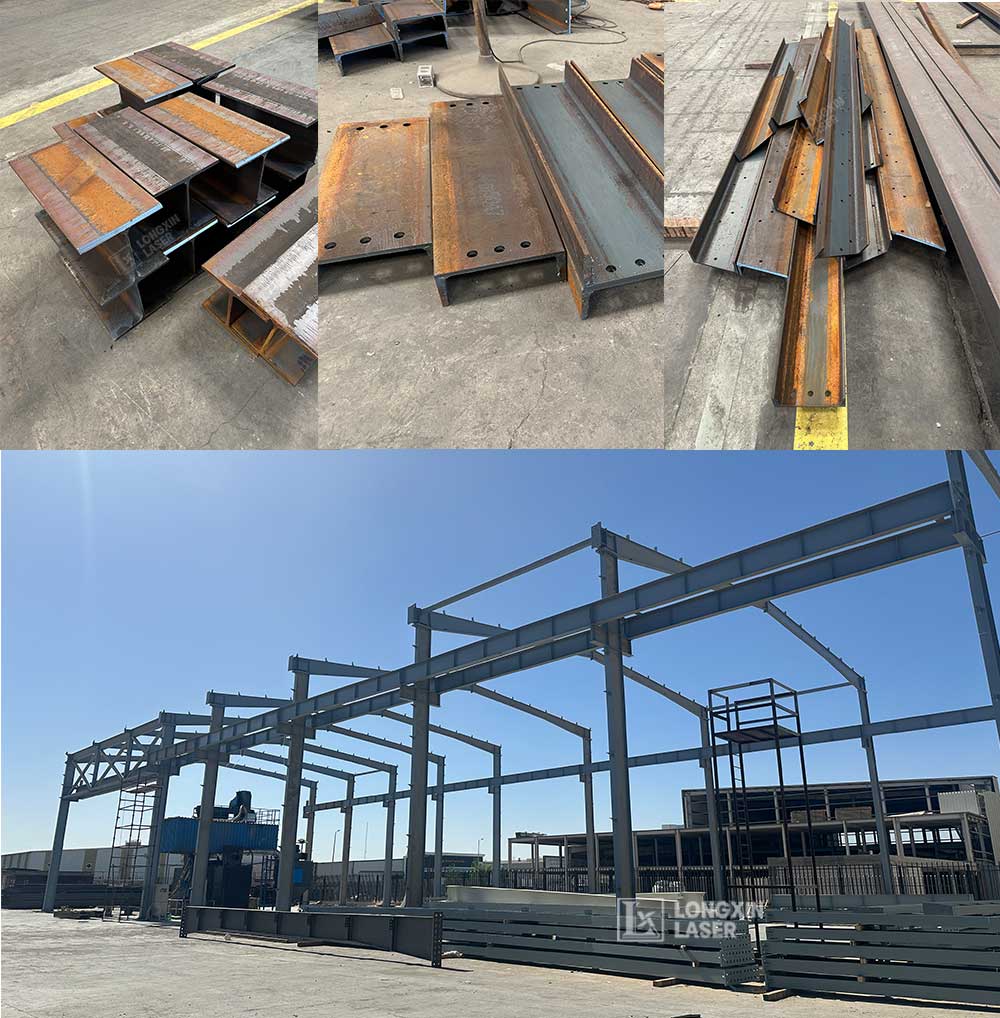

Zero-Error Precision: Bolt holes line up perfectly on-site, eliminating costly re-works.
Labor Savings: Reduced the workshop crew by 4 people per shift.
"The T35 from China has changed our entire workflow. Handling 12-meter beams is now effortless." — Production Manager, Saudi Steel Factory.
Why Choose Our Laser Solutions?
As a professional laser manufacturer in China, we understand the harsh environments of Middle Eastern factories (heat and dust). Our machines are built with:
Dust-proof electrical cabinets .
Heavy-duty bed frames that don't deform under Saudi’s high-temperature fluctuations.
Remote 24/7 technical support for our Saudi partners.
Whether you are in Riyadh, Jeddah, or Dammam, if your steel structure business needs to handle extra-long, heavy-duty profiles, the T35 is your ultimate solution.
Ready to boost your steel fabrication? [Contact LX Laser] today for a quote or a factory video tour!
