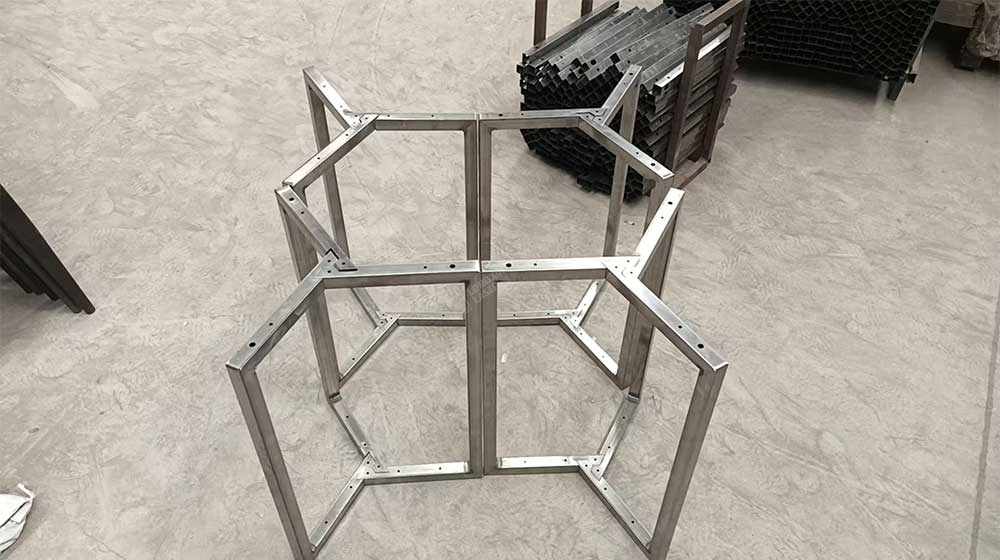

Struggling with square tube laser cutting clamping deformation? This guide from LX Laser explores the causes and provides professional solutions to improve cutting precision.In the precision metal fabrication industry, square tubes are widely used in furniture, construction, and automotive sectors. However, clamping deformation remains a major pain point. When the chuck grips the tube too tightly, the thin walls collapse; too loosely, and the cutting accuracy drops.
As a professional manufacturer, LX Laser (www.lxcuttingmachine.com) provides the following technical analysis and solutions.
1. Root Causes of Deformation
Before finding a solution, we must understand why square tubes deform:
Excessive Clamping Force : Traditional pneumatic chucks often use a fixed high pressure that exceeds the structural limit of thin-walled tubes.
Improper Contact Points : Standard flat jaws apply pressure to the middle of the tube wall—the weakest part of the square profile.
Inertia during Rotation : High-speed rotation causes centrifugal force, leading to vibration and micro-deformations.
2. Professional Solutions
A. Intelligent Pneumatic Pressure Adjustment
Modern fiber laser tube cutters from LX Laser feature intelligent pressure valves.
Solution: Operators should adjust the chuck pressure based on the wall thickness. For thin square tubes (e.g., <2mm), reduce the PSI to the minimum stable level.
B. Utilizing V-Shaped Jaws
One of the most effective ways to prevent deformation is changing the contact point.
Solution: Use V-shaped jaws to grip the tube at its corners (R-angles). The corners are the most rigid part of the square tube, allowing for high clamping force without collapsing the walls.
C. Full-Stroke Intelligent Chucks
LX Laser’s high-end models use full-stroke automatic chucks.
3. Technical Tips for High-Precision Cutting
Nylon Jaws : For stainless steel decorative tubes, use nylon or customized soft jaws to avoid surface scratches and crushing.
Follow-up Support : Ensure your machine has an active support system to prevent the tube from sagging due to gravity.
Why Choose LX Laser?
At LX Laser, we specialize in high-efficiency fiber laser tube cutting machines. Our equipment is designed to handle various profiles including square, rectangular, and oval tubes with zero-deformation technology.
