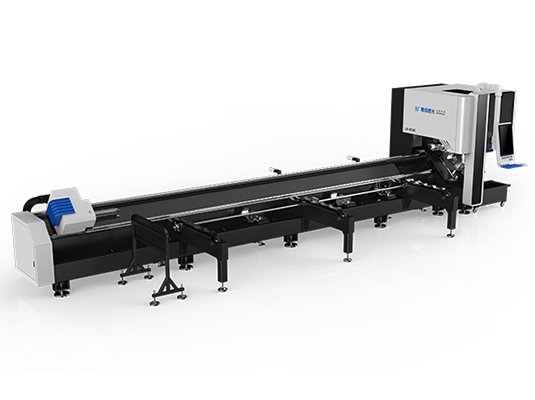

Short tail material tube laser cutting machine K16S

  • Video
  • Description
  • Parameter
  • Sample
  • FAQ


 Replacing three-chuck machine perfectly, saving equipment space – LX-K16S




The front chuck can be moved left and right

- The laser head can cut between the front and rear chucks

- Can be infinitely close to zero tailings, reducing production costs

Short tail material tube laser cutting machine




Unique machine bed design

- Equipped with automatic loading system in standard version.

- Integrated innovative design of automatic loading, feeding, cutting and unloading

- Cost-effective, saving equipment space

Short tail material tube laser cutting machine




FSCUT EtherCAT Bus Controller

The system responds quickly and improves production efficiency greatly.

- It has strong anti-interference ability and realizes precise and stable cutting.

- With its own intelligent management and visualization of the production process, it provides the best support for the optimization of  production process.

- We can provide European advanced operating system if you need professional tube cutting effect.

Fiber Laser Pipe Cutting Machine




Multi-functional cutting

- Applicable types of tubes: Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangle…

- Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…

- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…

Fiber Laser Pipe Cutting Machine



Model No.LX-K16
Outside Diameter15-159mm
Square Diameter15*15-110*110mm
Tube Length6200mm(can be costomized)
Laser Power1500-3000W
Laser SourceMAX / China
Laser HeadOSPRI / China
L*W*H (mm)9700*3000*2000
Machine weight3.8 Tons
Pneumatic chuckLingman / China
Voltage380V 50Hz 3Phase (can be customized)
Control SystemFSCUT / China
Air pressure1.6 - 3.0 MPa
Nesting SoftwareFSCUT / China
Y-axis rack & pinionFASTON / Taiwan
X & Z-axis ball screwTBI / Taiwan
X, Y & Z-axis railChina
Servo motor & driverINOVANCE / China
ReducerFASTON / Taiwan
Pneumatic systemSNS / China
Electrical proportional valveSNS / China
Air switchSCHNEIDER / France


P.S.:

1. Tube material: mild steel, alloyed and stainless steel, brass, copper, aluminum alloy, etc.

2. Tube shape: round, square, rectangular, oval, L shape, U shape, etc.

Short tail material tube laser cutting machine
