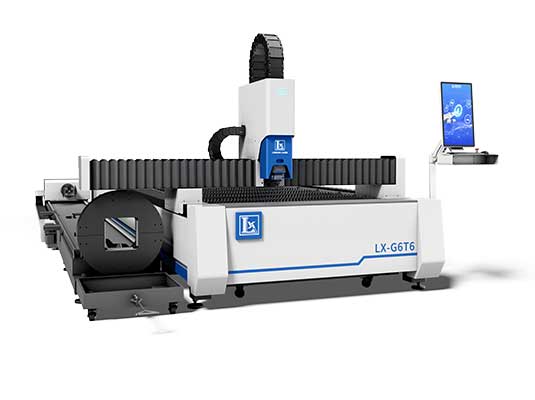

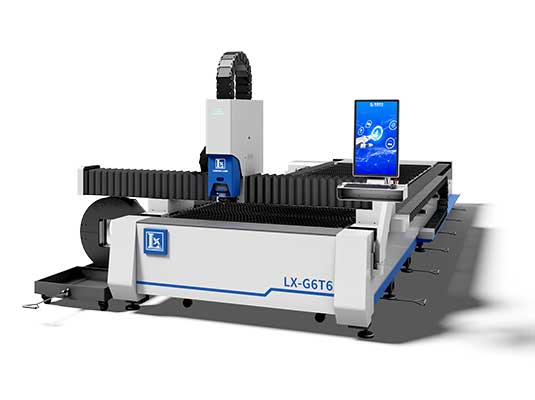

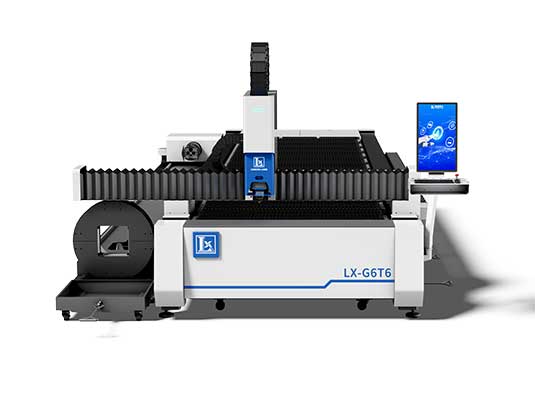

The LONX LX-G6T6 Sheet and Tube Laser Cutting Machine combines flat sheet laser cutting and tube laser cutting into one intelligent system, helping manufacturers reduce equipment investment while increasing production flexibility.
Powered by a high-performance fiber laser source and an advanced CNC control system, the LX-G6T6 delivers high-speed, high-precision cutting for carbon steel, stainless steel, aluminum, brass, and many other metal materials.
Whether you manufacture metal furniture, construction machinery, automotive components, steel structures, or industrial equipment, the LX-G6T6 provides an efficient and reliable solution for both sheet and tube fabrication.
Process both metal sheets and metal tubes with a single machine, reducing factory space requirements and equipment costs.
The precision transmission system and intelligent motion control deliver positioning accuracy of ±0.03 mm, ensuring excellent cutting quality and consistent production results.
Maximum running speed reaches 120 m/min, allowing faster processing and improved production efficiency for high-volume manufacturing.
The integrated heavy-duty welded frame undergoes stress-relief treatment and precision machining to provide excellent rigidity, vibration resistance, and long-term stability.
Equipped with the BOCHU CypCut control system featuring:
Automatic nesting
Fly cutting
Corner optimization
Breakpoint resume
Adaptive edge detection
Automatic gas pressure calibration
These intelligent functions improve cutting efficiency while reducing material waste.
Instead of purchasing two independent machines, manufacturers can complete both sheet and tube cutting on one platform, reducing production costs and simplifying workflow.
The lightweight aerospace-grade aluminum beam offers high rigidity with reduced moving mass, enabling faster acceleration and improved machining accuracy.
The machine uses a world-class fiber laser source featuring:
Excellent beam quality
High electro-optical conversion efficiency
Stable laser output
Low maintenance costs
Long service life
Suitable for continuous industrial production.
Professional nesting software maximizes material utilization by automatically arranging cutting layouts.
Features include:
DXF & DWG import
Automatic nesting
Common-edge cutting
Remnant management
Cutting simulation
Collision detection
Production reports
This helps manufacturers reduce scrap while improving productivity.
| Item | Specification |
|---|---|
| Working Area | 6100 × 1530 mm |
| Tube Length | 6000 mm |
| Tube Diameter | Ø10–240 mm |
| Chuck Capacity | 280 kg |
| Positioning Accuracy | ±0.03 mm |
| Repeat Positioning Accuracy | ±0.03 mm |
| Maximum Speed | 120 m/min |
| Maximum Acceleration | 1.0 G |
| Power Supply | 380V / 50Hz |
The LX-G6T6 fiber laser cutting machine can process:
Carbon Steel
Stainless Steel
Aluminum
Aluminum Alloy
Brass
Galvanized Steel
Mild Steel
Suitable for both sheet metal and tube fabrication.
The LX-G6T6 is widely used in:
Metal Fabrication
Steel Structure Manufacturing
Automotive Parts
Construction Machinery
Agricultural Machinery
Kitchen Equipment
Electrical Cabinets
Metal Furniture
Advertising Signs
Industrial Equipment Manufacturing
Compared with traditional cutting methods, the LX-G6T6 offers:
Higher cutting speed
Lower operating costs
Excellent edge quality
Minimal heat-affected zone
Reduced material waste
Fully automated production
Lower maintenance requirements
Easy operation for beginners
LONX provides comprehensive global support, including:
Installation and commissioning
Operator training
Remote technical support
Spare parts supply
Software upgrades
Lifetime technical assistance
Global service network covering more than 180 countries
Looking for a reliable Sheet and Tube Fiber Laser Cutting Machine?
Contact LONX today to receive:
Free cutting sample
Machine recommendation
Factory-direct quotation
Online demonstration
Professional technical support
| Item | Specification |
|---|---|
| Working Area | 6100 × 1530 mm |
| Tube Length | 6000 mm |
| Tube Diameter | Ø10–240 mm |
| Chuck Capacity | 280 kg |
| Positioning Accuracy | ±0.03 mm |
| Repeat Positioning Accuracy | ±0.03 mm |
| Maximum Speed | 120 m/min |
| Maximum Acceleration | 1.0 G |
| Power Supply | 380V / 50Hz |
A sheet and tube laser cutting machine is an integrated fiber laser system designed to cut both flat metal sheets and metal tubes using one machine, improving production efficiency and reducing investment costs.
It can process carbon steel, stainless steel, aluminum, brass, galvanized steel, and various metal tubes and profiles.
The machine supports round tubes from Ø10 mm to Ø240 mm with a maximum tube length of 6 meters.
It is ideal for metal fabrication, steel structures, automotive manufacturing, machinery, furniture, kitchen equipment, and industrial component production.
