The High Cost of Waste
If you are cutting expensive materials like stainless steel or aluminum, the "tailing" (the waste left at the end of the tube) is a silent profit killer. Traditional 2-chuck laser machines often leave 200mm to 400mm of waste per pipe because the clamp cannot hold the very end of the tube while cutting.
For high-volume manufacturers, this scrap metal represents tens of thousands of dollars annually.

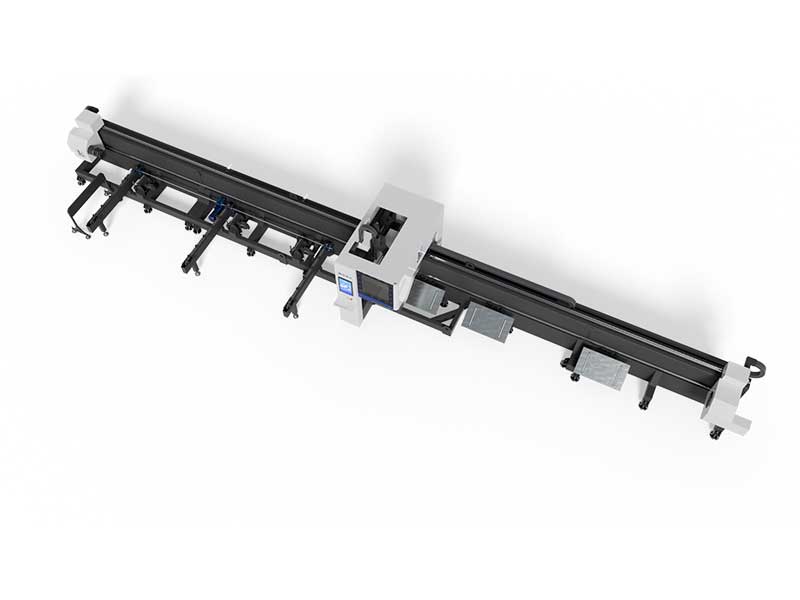

This is why the 3-Chuck Zero Tailing Laser Pipe Cutter has become the industry standard for cost-conscious manufacturers. But the big question remains: What is the price difference, and is it worth the investment?
This guide analyzes the market pricing for 2025 and calculates the real ROI of upgrading to a 3-chuck system.
Market Price Ranges: What to Expect
While exact pricing depends on power (Wattage) and specific configurations, here are the estimated market price ranges for a standard 6-meter fiber laser pipe cutter with 3-chuck technology:
Entry-Level (1.5kW - 3kW): $50,000 – $75,000 USD
Best for: Thin-walled pipes, mild steel, smaller workshops.
Typical Config: Domestic (Chinese) laser source, standard pneumatic chucks.
Mid-Range Performance (3kW - 6kW): $80,000 – $130,000 USD
Best for: Stainless steel, aluminum, thicker manufacturing schedules.
Typical Config: IPG/nLight source, high-speed servo motors, heavy-duty bed.
High-End Heavy Duty (6kW - 12kW+): $150,000 – $300,000+ USD
Best for: Heavy structural steel (H-beams, thick channels), 24/7 operation.
Typical Config: Fully automated loading systems, beveling heads, German components.
Note: A 3-chuck machine typically costs 15%–25% more than a standard 2-chuck machine. Below, we explain why this premium pays for itself.
Why Does a 3-Chuck Machine Cost More?
The price tag isn't just about the extra clamp. It involves a complete mechanical upgrade:
The Third Chuck Mechanism: The machine features a movable middle chuck or a pull-out rear chuck. This allows the machine to "hand off" the pipe, stabilizing it right up to the last millimeter of the cut.
Complex Control System: The bus control system (CNC) must coordinate three chucks simultaneously to prevent twisting or torque errors, requiring more advanced software (e.g., TubesT with 3-chuck logic).
Longer Bed & Structure: To accommodate the movement of three chucks, the machine bed is often designed with higher rigidity to ensure accuracy over long distances.
The ROI Calculation: When Does the Machine Pay for Itself?
Don't look at the purchase price in isolation. Look at the Material Savings
Scenario:
Material: 304 Stainless Steel Pipe
Daily Usage: 100 pipes (6 meters length)
Traditional 2-Chuck Waste: 250mm (0.25m) per pipe
3-Chuck "Zero" Waste: ~0mm - 20mm (effectively zero)
** The Math:**
Saved Length: 0.25m x 100 pipes = 25 meters saved per day.
Material Cost: If your 304 SS pipe costs $20 per meter.
Daily Savings: $500 per day.
Annual Savings (260 working days): $130,000 USD per year.
The Verdict:
Even if the 3-chuck machine costs $30,000 more than a 2-chuck model, the material savings alone pay for the price difference in roughly 3 months. After that, the savings go directly to your bottom line.
4 Key Factors That Influence the Final Price
When requesting a quote for a 3-chuck laser cutter, these four variables will swing the price significantly:
Laser Power (Source):
Moving from 3000W to 6000W can add 20k−30k to the price. Ensure you don't over-spec. If you only cut 4mm wall thickness, 3000W is sufficient.
Automation (Loading/Unloading):
Adding an automatic bundle loader facilitates "lights-out" manufacturing but adds 15k−25k to the initial cost.
Chuck Opening Size:
Standard chucks handle up to 220mm diameter. If you need to cut pipes up to 350mm or 500mm, the price increases due to the massive pneumatic power required.
Brand Components:
Specifying a Precitec head and IPG source will cost more than Raytools and Raycus, but offers higher stability for reflective materials.
Conclusion: Is the 3-Chuck System Right for You?
If you are a job shop cutting cheap mild steel occasionally, a standard 2-chuck machine is likely sufficient.
However, if your production involves high-value metals (Stainless, Aluminum, Brass) or high-volume production, the "Zero Tailing" 3-chuck laser cutter is not an expense—it is a cost-saving tool.
Ready to calculate your specific ROI?
Contact Longxin laser engineering team today. Tell us your pipe specifications and material type, and we will provide a customized price quote and material savings report.
