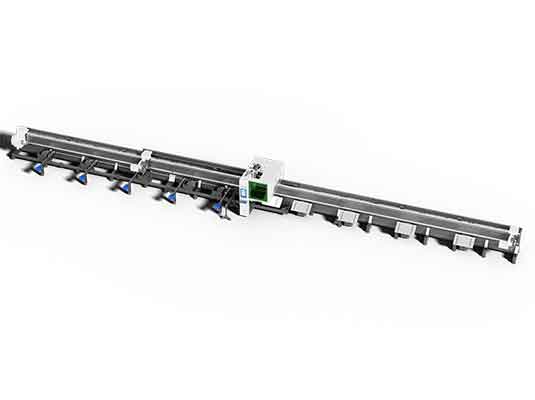

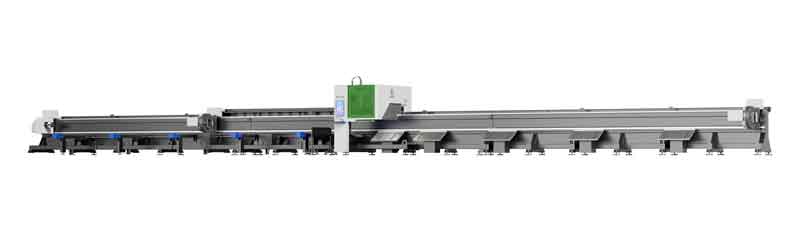

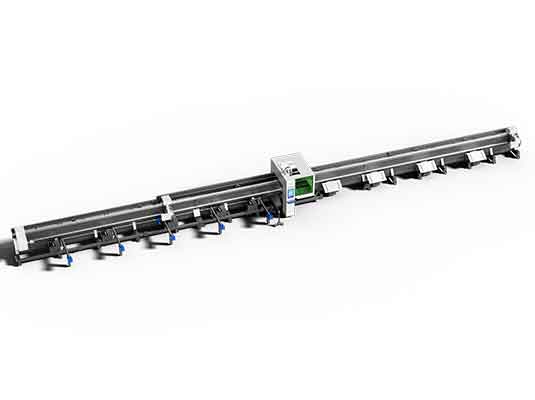

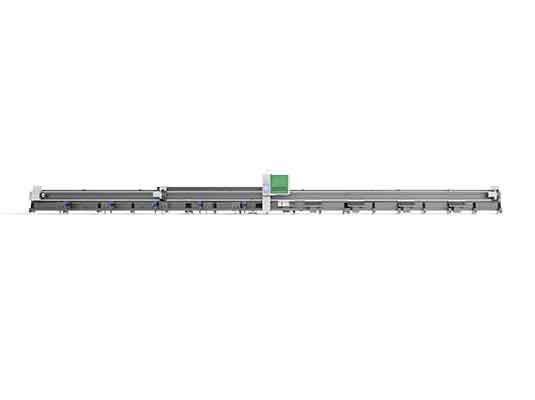

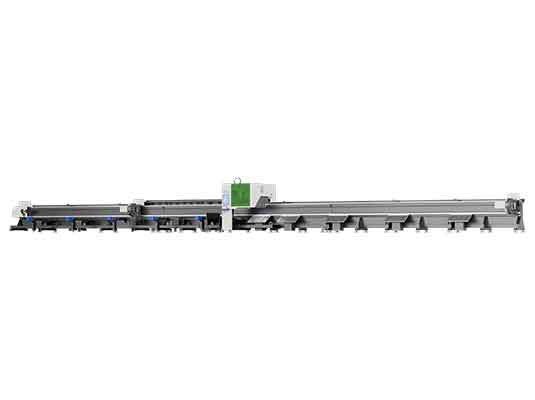

High-Precision Bevel Tube Laser Cutting Machine: LX-T26

Industrial Heavy-Duty Fiber Laser Tube Cutter with ±45° Beveling, 12-Meter Automatic Loading, and True Zero Tailing Technology.

1.Powerful Processing Capability for Large and Heavy Tubes

- Extra-Large Cutting Capacity: Handles round tubes from Ø15 mm to 250 mm and square/rectangular tubes from 15×15 mm to 250×250 mm.

- Extended Loading Length: Standard or optional 5,500 mm to 12,000 mm (5.5–12m) loading system designed for extra-long raw pipes.

- Heavy Payload Support: Max single-tube load capacity up to 300 kg, supporting linear weights up to 25 kg/m.

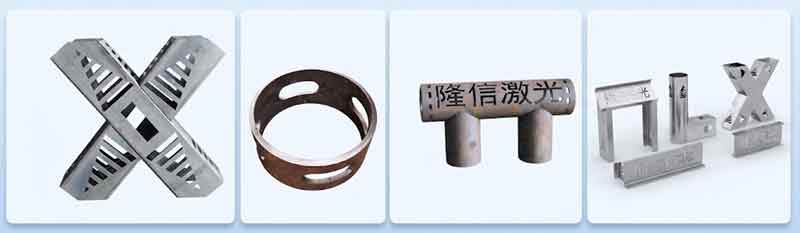

- Wide Profile Compatibility: Processes standard round and square pipes as well as channel steel, angle steel, and I-beams.

2. High-Precision 5-Axis Bevel Cutting (±45°)

- Proprietary Rotary Axis Design: Features a self-developed rotary axis structure and 5-axis cutting head supporting ±45° precision bevel cutting.

- Direct-to-Weld Joint Quality: Eliminates manual grinding and secondary bevel milling, significantly boosting downstream welding speed and joint reliability.

3. Moveable Front Chuck for True Zero Tailing

- Dynamic Avoidance Chuck: Moveable front chuck mechanism shifts dynamically to avoid cutting head interference.

- Zero Scrap (Tailing Length ≥ 0 mm): Advanced CNC nesting algorithms reduce scrap length down to ≥ 0 mm, minimizing expensive alloy and steel waste.

4. Side-Mounted Bed Full-Stroke Pneumatic Chucks

- Ergonomic Side-Mounted Bed: Lateral open-frame structure offers unobstructed loading and unloading, compact shop-floor footprint, and high structural rigidity.

- 260×260 mm Full-Stroke Pneumatic Chuck: Full-range automatic clamping without manual jaw replacements or adjustments; fully sealed dust-proof enclosure ensures minimal maintenance and long service life.

- Heavy-Duty Annealed Machine Body: High-strength steel plate construction subjected to high-temperature stress-relief annealing and gantry milling for exceptional vibration dampening and long-term geometric accuracy.

5. High Dynamic Performance Precision CNC Control

- High-Speed Dynamic Drive: Max positioning speed of 100 m/min, 1.2G acceleration, 120 rpm B-axis rotary positioning, and ±0.03 mm X/Y repeatability.

- Industrial EtherCAT CNC System: Integrated BOCHU bus control combines motion, laser modulation, and assist gas delivery; includes rich parameter libraries with auto edge-finding, leapfrog cutting, co-edge cutting, breakpoint recovery, and weld seam compensation.

- Optional Intelligent Automation:

  * Servo follow-up centering system to maintain accuracy on medium/small tubes and structural profiles.

  * Servo follow-up unloading system with anti-sag support and automatic flip-plate continuous discharge.

  * Semi-automatic / fully automatic bundle loading systems for high-throughput unattended operations.

6. Diverse Industrial Applications Manufacturing Reliability

- Broad Industrial Scope: Tailored for structural steel, transmission towers, shipbuilding, oil and gas pipelines, construction machinery, bridge engineering, specialized vehicles, and heavy metal fabrication.

- Manufacturing Backing: Built by a national-level "Specialized and Innovative Little Giant" enterprise and National High-Tech Enterprise, supported by a global service network spanning 100+ countries with a 2-year warranty on core components (laser source and CNC system).

Frequently Asked Questions (FAQ)

Q1: What are the main benefits of a bevel tube laser cutting machine compared to straight cutting?

A1: A bevel tube laser cutter cuts angled edges up to ±45° on pipes and open profiles in a single pass. This produces weld-ready grooves directly on the machine, removing the need for manual grinding, saw beveling, or milling

Q2: How does the LX-T26-5 achieve zero-tailing (≥0 mm) processing?

A2: The machine features a moveable front chuck. As the pipe nears the end of the cut, the chuck shifts position to avoid interference with the cutting head, allowing full material utilization down to 0 mm scrap.

Q3: Can the machine process open structural profiles like channel steel and angles?

A3: Yes. In addition to round, square, and rectangular pipes, the chuck and control system handle channel steel, angle steel, and I-beams within rated weight limits.

Q4: Which laser power options are recommended for thick-walled pipes?

A4: Depending on tube wall thickness and material (carbon steel, stainless steel, or aluminum), laser power sources from 3,000W to 12,000W and above can be configured to achieve clean cuts and high processing speeds.
