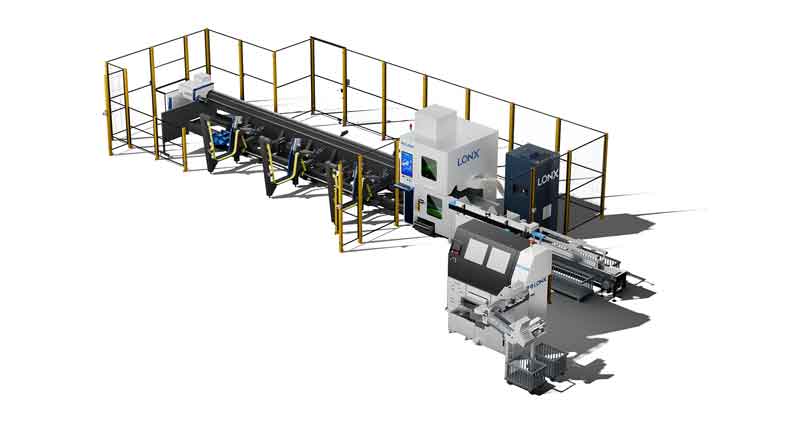

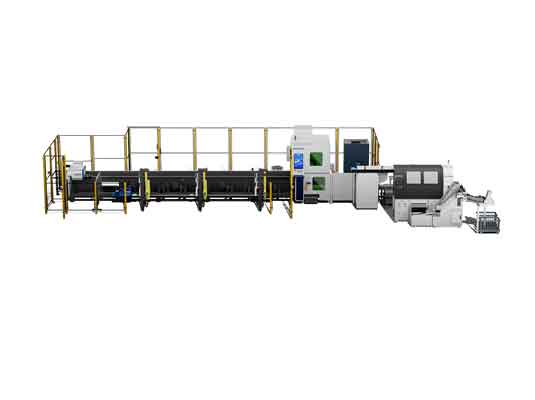

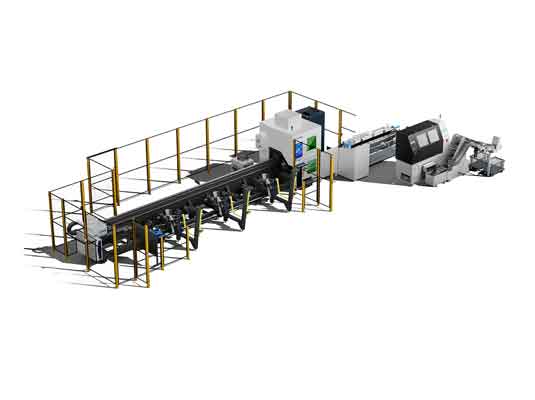

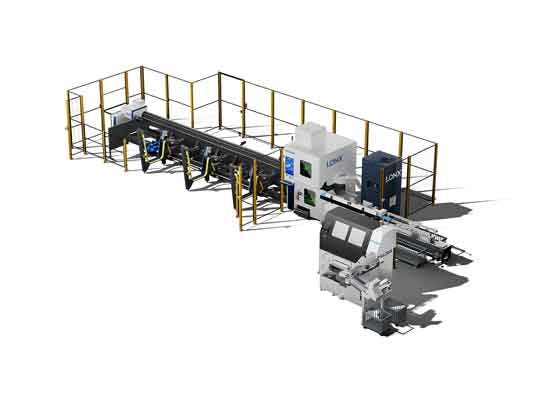

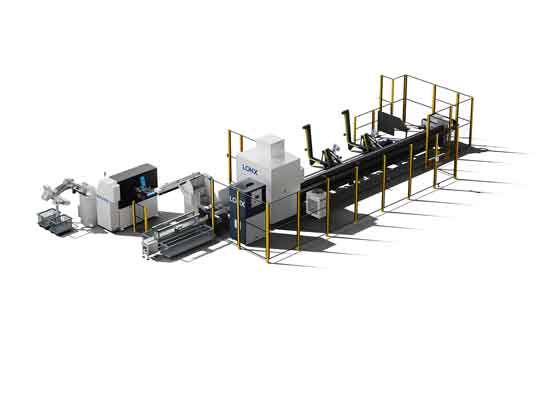

Transform your pipe fabrication operations from isolated manual workstations into a synchronized, high-throughput smart cell. Integrating a high-precision tube laser cutter machine in-line with an automatic Tube Chamfering Machine delivers an advanced, unmanned manufacturing solution engineered for industrial-grade tube cut-off, hole profiling, end facing, and dual-end chamfering.
By eliminating manual handling, unstacking, and intermediate transit between machines, raw bundles are automatically loaded, precision-cut by the tube laser cutter machine, and instantly transferred to the Tube Chamfering Machine for simultaneous inner/outer beveling and facing.
Technical Workflow: From Raw Bundle to Weld-Ready Chamfered Tube
Automatic Bundle Loading: Raw round, square, or rectangular pipe bundles are placed in the loading magazine, which automatically separates, measures, and indexes individual tubes into the cutting chucks.
Precision Laser Processing: The tube laser cutter machine utilizes full-stroke pneumatic chucks to clamp the tube with concentric rigidity, executing rapid cut-offs, clean hole cutting, and intricate profiling with minimal heat-affected zones.
In-Line Servo Transfer: The instant the cut is completed, an automated servo conveyor safely receives the workpiece and indexes it directly into the chamfering section—preventing part dropping, surface scratches, and production bottlenecks.
Dual-End Chamfering & Facing: The Tube Chamfering Machine locks the pipe in rigid hydraulic/pneumatic clamps. Twin cutter spindles advance simultaneously, executing internal chamfering, external chamfering, and face flattening in a single fast stroke.
Automated Sorting & Discharge: Finished, weld-ready tubes are discharged automatically onto collection racks, completely free of burrs, thermal slag, and sharp edges.
Traditional fabrication workflows require multiple operators to unload parts from a cutting saw or laser bed, load transport carts, and manually feed individual pipes into a standalone deburrer. Connecting the tube laser cutter machine directly with the Tube Chamfering Machine creates an uninterrupted flow that reduces shop-floor labor by up to 75% while eliminating surface scratch defects.
Automated robotic welding and mandrel tube bending require precise and consistent tube-end geometry.While the tube laser cutter machine ensures accurate length tolerances ($\pm0.05\text{ mm}$), the in-line Tube Chamfering Machine creates uniform $30^\circ$ or $45^\circ$ bevels and parallel, flat ends. This guarantees full weld penetration and zero fit-up gaps in automated assembly cells.
The servo-driven buffering unit bridges the dynamic speed of the fiber laser with the rapid cycle time of the Tube Chamfering Machine. The system balances throughput automatically, preventing production backups and enabling reliable 24/7 "lights-out" operation.
Both the tube laser cutter machine and the Tube Chamfering Machine are equipped with protective polymer rollers, scratch-free transfer guides, and localized chip extraction blowers, making the production line ideal for premium stainless steel, aluminum, brass, and carbon steel tubing.
Automotive & Commercial Vehicles: Exhaust tailpipes, seat structure frames, suspension arms, and cross-car beams.
Fitness Equipment Manufacturing: Treadmill frames, pull-up structural tubing, dumbbell bars, and modular gym equipment.
HVAC & Fluid Engineering: Heat exchanger tubes, condenser manifolds, boiler piping, and refrigeration lines.
Metal Furniture & Architecture: Office desk legs, modular shelving, guardrails, and precision architectural framing.
Upgrade Your Facility to an Unmanned Tube Cutting & Chamfering Line.
Share your tube specifications (OD, wall thickness, cut length, and material grade) with our engineering specialists. We will provide a comprehensive 3D line layout and cycle-time calculation within 24 hours.
A: When the tube laser cutter machine finishes cutting a piece, a synchronized servo unloader receives the workpiece and feeds it onto an automated conveyor. The conveyor guides the tube straight into the clamping zone of the Tube Chamfering Machine, eliminating manual loading and cart transport.
A: Yes. The line utilizes a double-head Tube Chamfering Machine equipped with dual opposed cutter spindles. Both tube ends are faced, inner-chamfered, and outer-chamfered simultaneously in just 2 to 4 seconds.
A: The tube laser cutter machine processes round, square, rectangular, and oval tubes seamlessly. For the Tube Chamfering Machine, round tubes are handled standardly, and customized clamping jaws/cutter profiles are available for square and profiled tubes.
