An Expert in Pipe Cutting, Since 2003


Replace TIG & electric welding perfectly – LX MEGREZ-δ100s

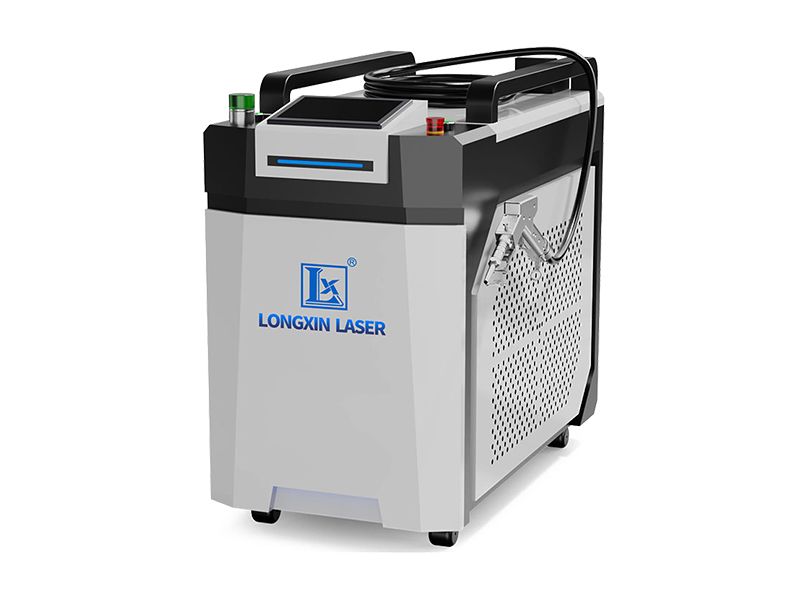

Handheld laser welding machine




Small size with low weight, perfect for outdoor working

- Low operation cost, welding without protective air available

- Nice welding effect with high speed, no need for secondary process

Handheld laser welding machine

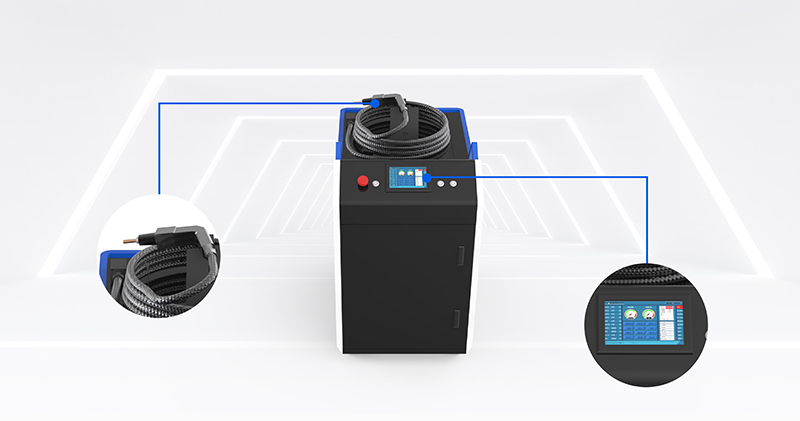

Easy to operate

- With LX Laser self-developed control system, you can operate the machine just 1 day!

Handheld laser welding machine

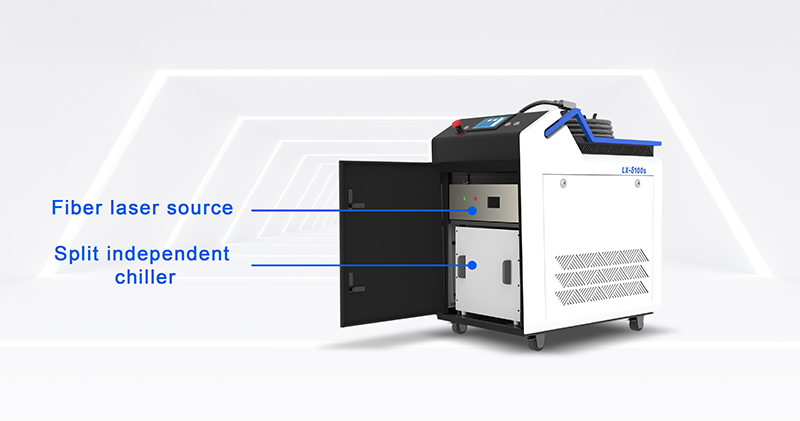

Split independent chiller

- Separation design with independent chiller, easy maintenance

Handheld laser welding machine





Ultra-long length laser transmission fiber

- 10 meters length laser transmission fiber, achieve to long-distance operation

Handheld laser welding machine

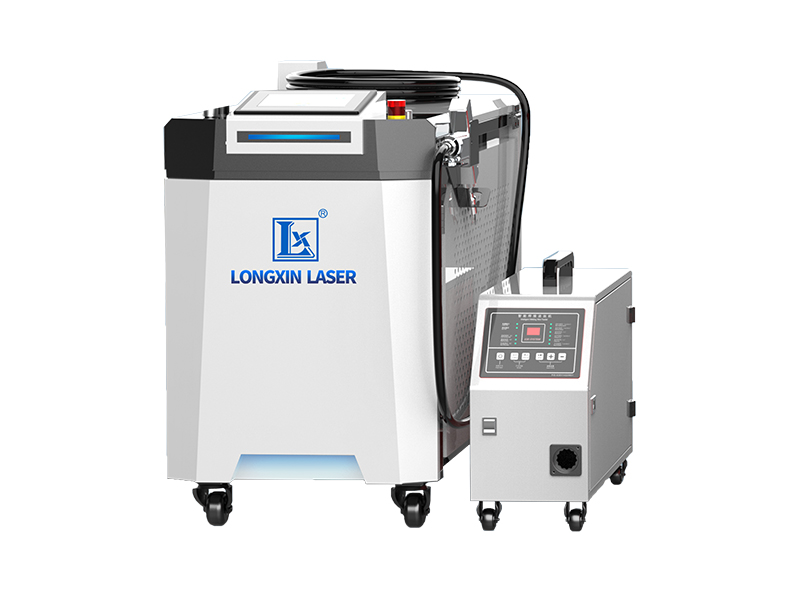

Laser welding head with wire feeding swinging function

- Low request on workpiece precision

- With safety lock on welding head, no ionizing radiation

- The welding gun is designed with the concept of ergonomics, fully considering the applicability of the welding process and the comfort of long-term use ( weight 0.8kg)

- It can avoid injury to people by mistake with operation safety lock. The drawer-type protective lens design is also easy for maintenance.

Handheld laser welding machine

Model No.LX MEGREZ-δ100s
Welding Penetration2-4mm (Stainless steel)
Welding Penetration2-4mm (Carbon steel)
Welding Penetration2-3mm (Galvanized steel)
Welding Penetration1.5-2.5mm (Aluminum)
Welding Penetration1.5-2.5mm (Brass)
L*W*H (mm)1098*750*1233
Laser Power
1000-2000W
Voltage380V 50Hz 3Phase (can be customized)
Air pressure0.1-0.2 MPa
Protective gas
Argon/Nitrogen/Compressed air
Laser line length10 meters (Can be customized)
Feeding wire materialAluminum/Carbon steel/Stainless steel
Feeding wire diameter0.8/1.0/1.2/1.6mm
Spot diameter1.5mm (Customized 2.5mm)
Machine power5-8KW
Laser sourceMAX / CHINA
Laser welding head
HANWEI / CHINA
Control systemLX LASER / CHINA
ChillerS&A / CHINA


Handheld laser welding machine
