Fiber Laser Pipe Cutting Machine

  • Video
  • Description
  • Parameter
  • Sample
  • FAQ



 Cost effective machine, small footprint – LX-V16 series




FSCUT EtherCAT Bus Controller

- The system responds quickly and improves production efficiency greatly.

- It has strong anti-interference ability and realizes precise and stable cutting.

- With its own intelligent management and visualization of the production process, it provides the best support for the optimization of  production process.

Fiber Laser Pipe Cutting Machine




Multi-functional cutting

- Applicable types of tubes: Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangle…

- Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…

- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…

Fiber Laser Pipe Cutting Machine

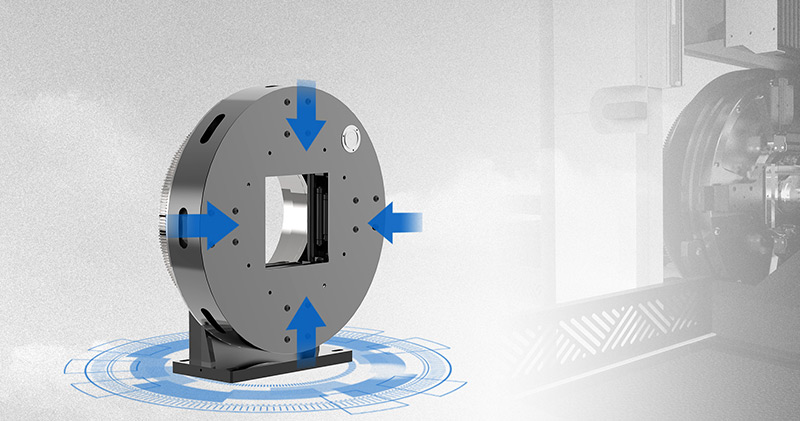

Smart clamping

- Dual motive chucks are compatible with a variety of pipes no need to replace or adjust clamps.

- If you want to cut small diameter & thin-walled tubes, we will install customized protective sleeve in the jaw of chuck to ensure that the tube is not damaged.

Fiber Laser Pipe Cutting Machine




Protective floating support device

- The floating support device will rise to keep the tube in a horizontal position.

- Skip production processes and minimize the labor costs and consumables

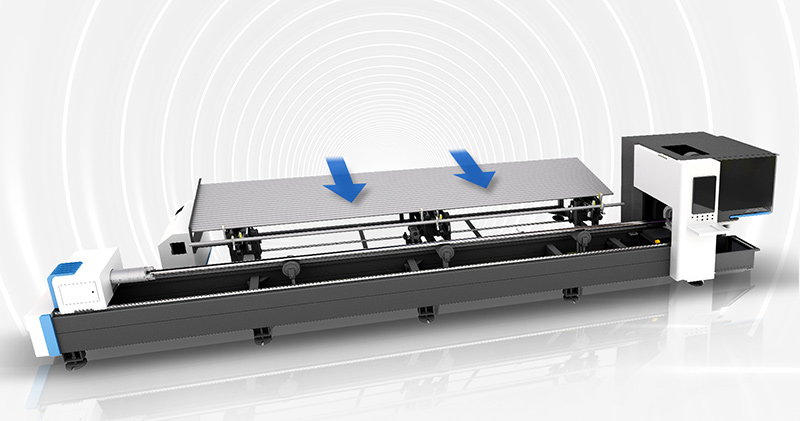

Optional function




Economical version automatic loading rack

- Round tubes, square tubes and rectangular tubes can be fully automated loading without human intervention.

- Robotic arm stuffing and feeding accurately

Fiber Laser Pipe Cutting Machine


Our Fiber Laser Pipe Cutting Machine is designed to deliver precise and efficient cuts on various materials, including steel, stainless steel, aluminum, brass, and copper. With its advanced fiber laser technology and cutting-edge software, this machine can comfortably handle even the most complex cutting tasks. One of the key advantages of our Fiber Laser Pipe Cutter is its versatility. With the ability to cut pipes of various shapes and sizes, this machine is suitable for multiple applications in construction, aerospace, automotive, and more industries.

Specification:

  • High-cutting speed and accuracy

  • Easy-to-use software

  • Minimal maintenance requirements

  • User-friendly interface


LX Cutting Machine is committed to delivering our customers the highest quality products and services because we believe in long-term relationships and value the trust, they place in us!



Model No.LX-V16
Outside Diameter15-159mm
Square Diameter15*15-110*110mm
Tube Length6200mm(can be costomized)
Laser Power1000-3000W
Laser SourceMAX / China
Laser HeadOSPRI / China
L*W*H (mm)9700*1700*2000
Machine weight3.2 Tons
Pneumatic chuckLingman / China
Voltage380V 50Hz 3Phase (can be customized)
Control SystemFSCUT / China
Air pressure1.6 - 3.0 MPa
Nesting SoftwareFSCUT / China
Y-axis rack & pinionFASTON / Taiwan
X & Z-axis ball screwTBI / Taiwan
X, Y & Z-axis railChina
Servo motor & driverINOVANCE / China
ReducerFASTON / Taiwan
Pneumatic systemSNS / China
Electrical proportional valveSNS / China
Air switchSCHNEIDER / France


P.S.:

1. Tube material: mild steel, alloyed and stainless steel, brass, copper, aluminum alloy, etc.

2. Tube shape: round, square, rectangular, oval, L shape, U shape, etc.

CNC Laser Tube Cutting Machine

1. Does the machine have automatic lubrication system?

Yes, our machine has automatic lubrication system. You can set the  lubrication time and interval time as needed.


2. How does the machine determine the center line of the tubing if the tube is slightly bent?

Our laser head has scanning function to check the tube bending degree and the control system will automatically compensates. You can also set in the system for it.


3. We have one pipe tube that is mid carbon content(SAE1020), diameter 10mm*1.25mm(wall thickness) , is this ok for machine?

Yes, this pipe is ok for our model LX-FL40. It is suitable for pipe diameter below 42mm, steel / stainless steel thickness within 3mm under 1000W laser power.


4. How many hours of working life has the laser? What is the spare part cost approximately?

Laser source life 100,000 hours (more than 20 years). Spare part is the protective lens and nozzle of the laser head. Each can use 2-5 months, we offer each 5pcs for spare and free of charge. For additional quantity, each cost 16USD/ pc.


5. Is there a difference between MAX / RAYCUS / IPG?

The quality of lasers made in China is gradually mature and stable. According to our testings, Max and Raycus are similar in performance. IPG is rarely used in the market within 6KW, unless customers concern on the brand and do not care about the cost. This is because IPG does not show obvious difference from the other two within 6KW power.The share of IPG lasers in China is also declining year by year, in 2018 was 48% and went down to 30% 2019. The share of Max and Raycus are similar, both about 20%.In addition, the laser source is only one part of the machine. Customers should pay more attention on the performance and efficiency of the whole equipment.


6. Regarding stabilizing electric transformer, for 220V 60hz e phase, how many KVA is required?

The transformer capacity is depends on the laser power. For laser power 1000W, it requires 40KVA.


7. PLC, has English or maybe Spanish language?

Our touch screen has both English and Chinese language. We can add Spanish or other language with your help for the translation.


8. Can we send you sample of our pipe in order for you to show us cutting of our material?

Yes, we always welcome customer send us their pipe for testing. Kindly send us pipe length ≥600mm, qty ≥ 3pcs for each size. The longer size and the more quantity the better.


9. What is the material loss every time laser cuts? I mean, when laser is cutting what is the length waste for every cut?

The laser cutting loss is very small, only 0.05-0.1mm/cut, while saw cutting loss would be about 2-5mm/cut.


10. After laser cuts, is the edge hardened by the laser temperature? Can we flare pipe easily without problem after cutting?

The hardening effects are different on different pipe materials. We suggest customers send us their tubes for testing and check the result.


11. Under what circumstances should I choose to use a laser machine?

If cutting quantity is more than thousand pieces per day, we suggest laser machine. As it has advantage on the cutting loss, operation cost(0.6USD/hour) and high efficiency(fast and no burr). In long term usage, laser machine can bring you more profits.


12. When can it cover the machine cost and gain profits for me?

According to our surveys, usually it would take about 0.5 to 1.5 years for our customers to cover the machine cost by the profits they obtained on the laser machine.

Send message
