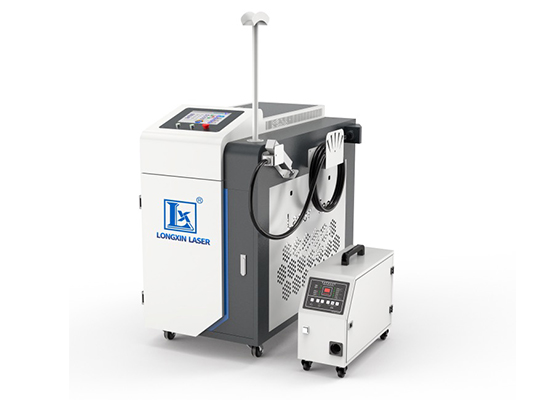

Replace TIG & electric welding perfectly – LX MEGREZ-δ100s
LX-TQ100 can be used for various welding processes such as spot welding, seam welding, and piling welding, making it suitable for welding needs across different industries.
Laser welding offers high strength welds, and the weld seams are aesthetically pleasing, without discoloration, eliminating the
need for secondary polishing.
Laser welding head with wire feeding swinging function
- Low request on workpiece precision
- With safety lock on welding head, no ionizing radiation
- The welding gun is designed with the concept of ergonomics, fully considering the applicability of the welding process and the comfort of long-term use ( weight 0.8kg)
- It can avoid injury to people by mistake with operation safety lock. The drawer-type protective lens design is also easy for maintenance.
| Model No. | LX MEGREZ-δ100s |
| Welding Penetration | 2-4mm (Stainless steel) |
| Welding Penetration | 2-4mm (Carbon steel) |
| Welding Penetration | 2-3mm (Galvanized steel) |
| Welding Penetration | 1.5-2.5mm (Aluminum) |
| Welding Penetration | 1.5-2.5mm (Brass) |
| L*W*H (mm) | 1098*750*1233 |
| Laser Power | 1000-2000W |
| Voltage | 380V 50Hz 3Phase (can be customized) |
| Air pressure | 0.1-0.2 MPa |
| Protective gas | Argon/Nitrogen/Compressed air |
| Laser line length | 10 meters (Can be customized) |
| Feeding wire material | Aluminum/Carbon steel/Stainless steel |
| Feeding wire diameter | 0.8/1.0/1.2/1.6mm |
| Spot diameter | 1.5mm (Customized 2.5mm) |
| Machine power | 5-8KW |
| Laser source | MAX / CHINA |
| Laser welding head | HANWEI / CHINA |
| Control system | LX LASER / CHINA |
| Chiller | S&A / CHINA |
