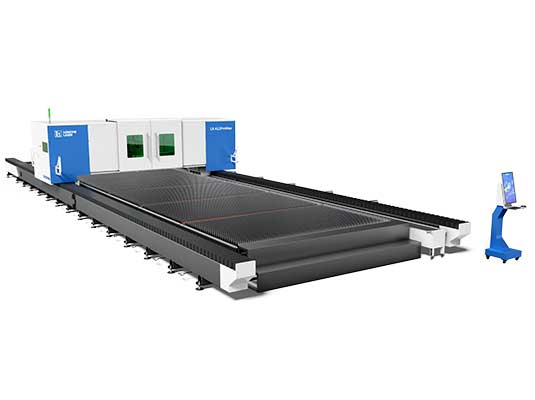

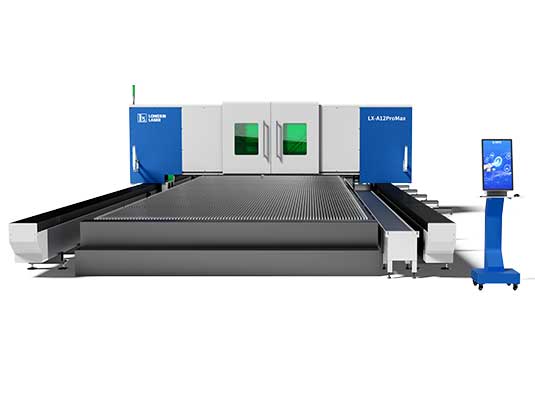

LX-A12ProMax Ultra-Large Format Fiber Laser Cutting Machine

Core Value Proposition: Designed for heavy-duty industrial processing, the LX-A12ProMax features an extra-large 12300×3250mm working area, modular segmented machine bed, and high-power laser sources from 12kW to 60kW.

 Key Features & Industrial Advantages

• Segmented Machine Bed Structure: Features a split-body design built with high-quality steel. Undergoes rigorous welding, dual aging treatments, and large gantry milling to release internal stress and achieve micron-level precision.

• Aerospace Aluminum Beam: Lightened and high-strength beam paired with high-precision servo motors and dual-drive gantry rack-and-pinion transmission. Includes accordion-style protective covers to prevent dust ingress.

• Zoned Dust Extraction & Safety Enclosure: Equipped with a follow-up dust extraction system that moves with the crossbeam to save energy. Optional outer protective enclosure with dark acrylic windows prevents spark splashes and reduces radiation.

• Advanced CypCutE CNC System: Integrated toolpath optimization, progressive 3-stage piercing, adaptive edge search, fly-cutting, and automatic corner acceleration/deceleration to ensure zero burn marks

Industry Applications & Cutting Samples

• Target Industries: Construction machinery, steel structure, heavy machinery, aerospace manufacturing, petroleum machinery, and tower industry.

• Processing Materials: Carbon steel, stainless steel, aluminum alloy, brass.

Technical Parameters

Q1: What are the main electrical supply requirements for operating the LX-A12ProMax?

A: The machine requires a 380V, 50Hz three-phase five-wire power supply with voltage stability within +/- 5% and a total power capacity of at least 60 KVA.

Q2: What cutting gases and air pressure are recommended for the LX-A12ProMax?

A: High-purity Oxygen (purity >= 99.99%) and Nitrogen (purity >= 99.99%) are recommended. For air cutting, an oil-free and moisture-free compressed air supply system with an output pressure >= 1.5 MPa and airflow >= 1 m3/min is required.

Q3: What are the key structural features of the LX-A12ProMax machine bed?

A: The machine utilizes a modular segmented bed design crafted from high-quality steel. It undergoes rigorous welding, primary aging, secondary aging, and large gantry milling to relieve internal stresses, prevent thermal deformation, and ensure long-term cutting precision.

Q4: What laser power options are available for the LX-A12ProMax?

A: The LX-A12ProMax supports multiple fiber laser power configurations from Maxphotonics, including 12kW, 20kW, 30kW, 40kW, and 60kW, depending on your material processing requirements.

Q5: What control system and software are integrated into this laser cutting machine?

A: It comes equipped with the Bochu CypCutE CNC laser cutting system, integrated with advanced nesting software. Features include automatic edge detection, 3-stage piercing, fly cutting, and real-time power adjustment to prevent corner burning.

Q6: What warranty and after-sales services are provided with the machine?

A: Longxin Laser provides a 1-year warranty for the machine tool, a 2-year warranty for the fiber laser source and control system, 24-hour rapid technical support, on-site training, and lifetime maintenance services.
