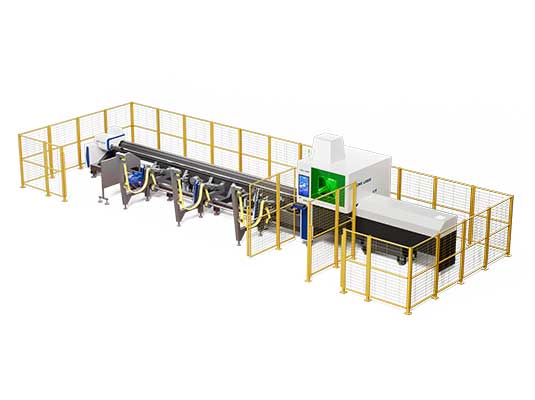

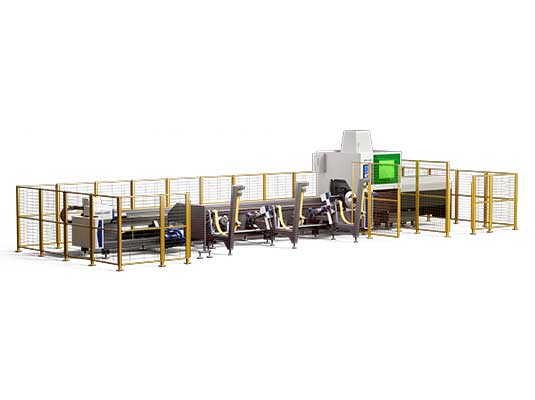

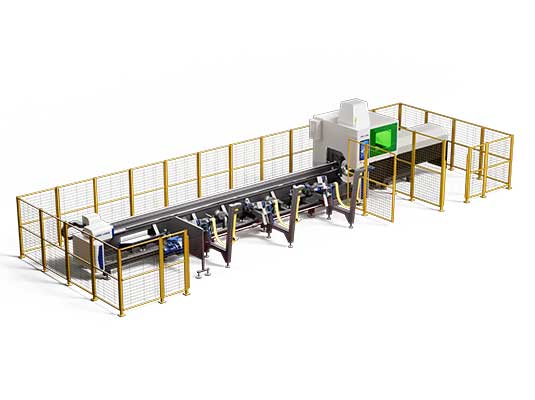

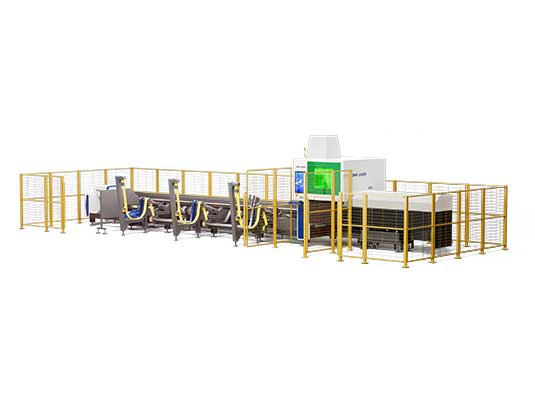

High-Efficiency Industrial CNC Fiber Laser Tube Cutting Machine with Movable Dual-Chuck System & Optional Auto Loader
≥50 mm Tail Length: Ultra-short tailing technology significantly reduces raw material waste.
1500W – 3000W Power: Powered by high-efficiency fiber laser sources (Raycus / Maxphotonics).
±0.05 mm Precision: High positioning accuracy with 1.5G maximum acceleration.
190mm Full-Stroke Chuck: Handles round tubes (Ø15–180 mm) and square tubes (□15x15–180x180 mm).

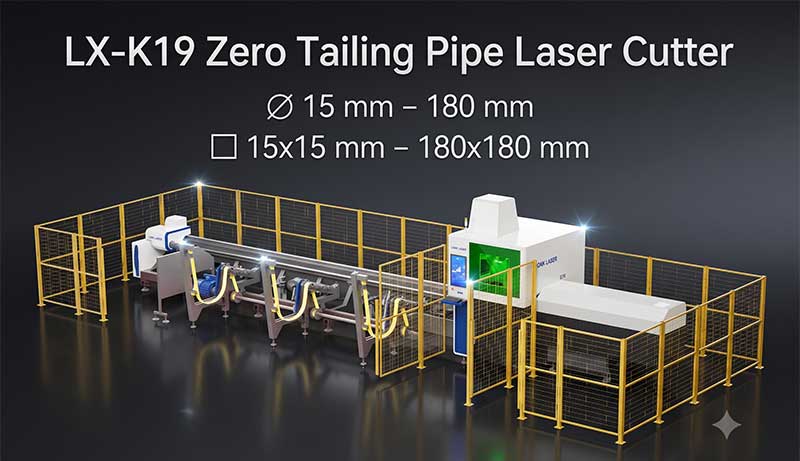

The LX-K19 zero tailing pipe laser cutter is an advanced, high-precision industrial fiber laser cutting solution engineered specifically for processing metal tubes with maximum material utilization. Powered by a high-performance fiber laser source (1500W – 3000W) and an integrated BOCHU CNC controller (TubePro system), the LX-K19 seamlessly cuts carbon steel, stainless steel, and aluminum alloy pipes across square, round, obround, and profile shapes.
Equipped with an innovative movable front chuck design, the LX-K19 dramatically reduces material scrap during tail-end cutting, achieving tailing lengths down to ≥50 mm. Its heavy-duty side-mounted machine bed ensures high structural rigidity, dynamic stability, and effortless loading/unloading for continuous 24/7 industrial production.
Zero-Tailing Waste Reduction: During final tail cutting, the front chuck dynamically translates to eliminate interference, enabling ultra-short tailing (≥50 mm) and saving substantial material costs annually.
Full-Stroke Pneumatic Square-Hole Chuck: Built-in cylinder pneumatic clamping with self-centering 4-jaw guidance guarantees high clamping stability and straightness without manual adjustment.
In-House Annealed Machine Bed: Heavy-duty welded steel bed subjected to high-temperature stress-relief annealing and secondary aging, precision-machined on gantry milling centers to ensure zero deformation over long-term operation.
Intelligent BOCHU TubePro Software: Features automatic edge-finding, 4-side center calibration, fly cutting, leapfrog motion, weld seam detection, and pre-piercing routines.
Smart IoT Monitoring (My Machine Tool): Remote real-time production tracking, digitalized processing daily reports, yield analytics, and alarm notifications via mobile app/mini-program.
School & Office Furniture: High-speed cutting of chair frames, table legs, and steel tubing with clean, burr-free edges.
Fitness Equipment: Heavy-duty tubes for exercise racks, treadmills, and gym machinery.
Hardware & Home Decor: Metal shelving, display racks, handrails, and lighting hardware.
Automotive & Electric Vehicles (EV): E-bike frames, motorcycle components, and structural chassis tubing.
Metal Fabrication & Construction: Steel pipes, channel profiles, angle steel, and customized metal structures.
| Technical Parameter | Specification Details |
| Model Name | LX-K19 Zero Tailing Pipe Laser Cutter |
| Tube Cutting Range (Round) | Ø 15 mm – 180 mm |
| Tube Cutting Range (Square) | □ 15x15 mm – 180x180 mm |
| Minimum Tail Length | ≥ 50 mm (Achieves ultra-short tailing with proper nesting) |
| Positioning Accuracy | ±0.05 mm / 1000 mm |
| Repeatability | ±0.05 mm |
| Max Acceleration / Rotation | 1.5 G / 130 r/min |
| Max Single-Tube Load | 150 kg (Min. wall thickness ≥0.6 mm) |
| Laser Power Options | 1500W / 2000W / 3000W Fiber Laser |
| Control System | BOCHU Small Tube System / TubePro & Tubest Pro |
| Machine Dimensions (LWH) | ≈ 9400 x 1900 x 2200 mm |
| Total Host Weight | ≈ 3.4 Tons |
A: The LX-K19 uses a specially engineered movable front chuck. When the machine cuts the end of a pipe, the front chuck shifts forward to allow the laser cutting head to reach closer to the clamping point, reducing the tail length down to ≥ 50 mm and saving up to 10%–20% in material costs compared to traditional tube cutters.
A: Yes, the LX-K19 supports both semi-automatic loading systems (up to 6 tubes per batch) and fully automatic bundle loading systems (up to 1.6 Tons load capacity), drastically minimizing labor requirements and boosting productivity.
A: We provide a 1-year full machine warranty, lifetime technical support, 24/7 fast-response customer support, and free lifetime software updates.
