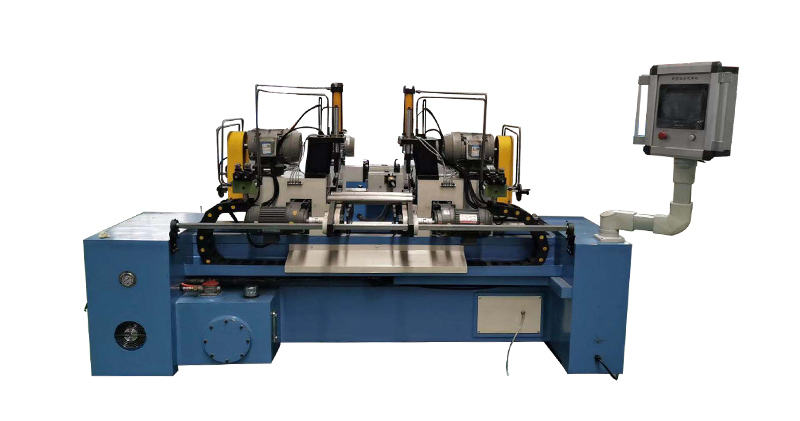

CNC Double end pipe rod chamfering machine

  • Description
  • Parameter
  • Sample
  • Video
  • FAQ

Main Features:

1.Robot arm feeding, suitable for thin pipes.

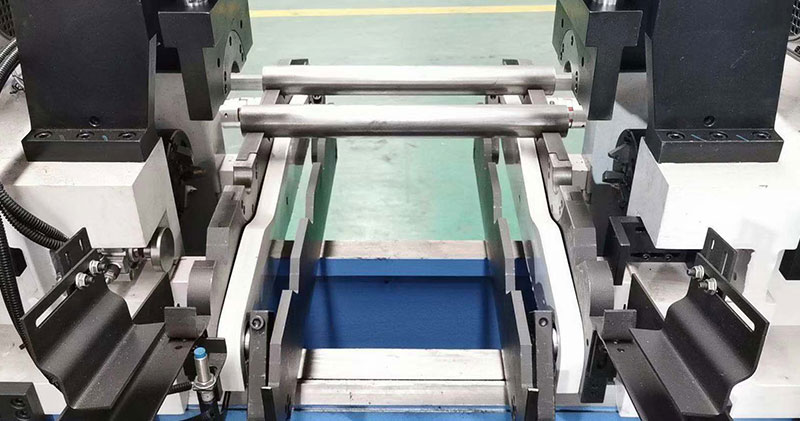

2.The special designed feed mechanism is accurate and reliable, and the intermediate transport station can choose the type of the necessary type according to the outer diameter of the pipe.

3.Strong head design, power head and motor drive, head fixed. Growth knife life.

4.Use self-centering fixture to ensure the processing concentricity.

5.With the speed of double speed of the shock absorber, it saves working hours, and is easy and easy to adjust and perfect.

6.The system is manual, automatic and easy to debug and use

7.End special cutter design, using normalized blade, adjust the knife is simple and convenient, the tube Angle, corner, surface finish in one time, an average of 3 to 10 seconds a (according to the size of the pipe diameter and thickness), fast efficiency.

8.Adapting materials: steel, iron, aluminum, copper, stainless steel, etc.

9.The guide rail in the head of the machine adopts the casting, which improves the precision by CNC processing.

Technical parameters

Motor power

2.2kw(2 motors)

Voltage

380V

Compressed air

6-8kgs/cm2

Processing capacity

Round Pipe O.D. 10-60mm, Length 250-1000mm (standard)

Processing efficiency

4-20 s/piece

Suitable materials

metal, plastic, nylon, solid bar

Dimensions LxWxH

2800x1500x1700mm



automatic tube end chamfering machine LX-50FA

1. Are standard inserts used in this tool holder or its customized? How many inserts can be fitted in single tool for different chamfering with different chamfering angle achievable from this single supplied tool.

The knives are standard, but the knives holders are not , then realize the different angle chamfering.


2. How offset (+/- setting) setting can be done during running operation, is it totally manual?

Manually shake the machine head to separate or close the machine head. After adjusting to the approximate position, fix the machine head, and then adjust the Rear positioning nut of the hydraulic cylinder, to adjust the accuracy and set the offset (+/- setting)


3. What is the mechanism for centring the different tube diameters?

For workpieces of different sizes, only simple replacement and adjustment of the cutter head and clamping die are required.


4.Does in your design tooling head assembly moving with box fitting or  with linear guide rail bearing.

The chamfering head and machine body are dovetail guides, not linear guide.
