Revolutionizing Fabrication: The 3D Beveling Laser Tube Cutter for Welding Prep

In the competitive landscape of modern metal fabrication, efficiency is the key to profitability. Traditional methods of preparing tubes for welding often create bottlenecks in production. Enter the 3D beveling laser tube cutter for welding prep—a technological breakthrough that combines cutting and edge preparation into a single, automated step.

Why "Welding Prep" Matters in Laser Cutting

For heavy structural components, pipelines, and automotive parts, a simple straight cut (90 degrees) is often insufficient. To ensure strong weld penetration and structural integrity, tubes require specific bevels.

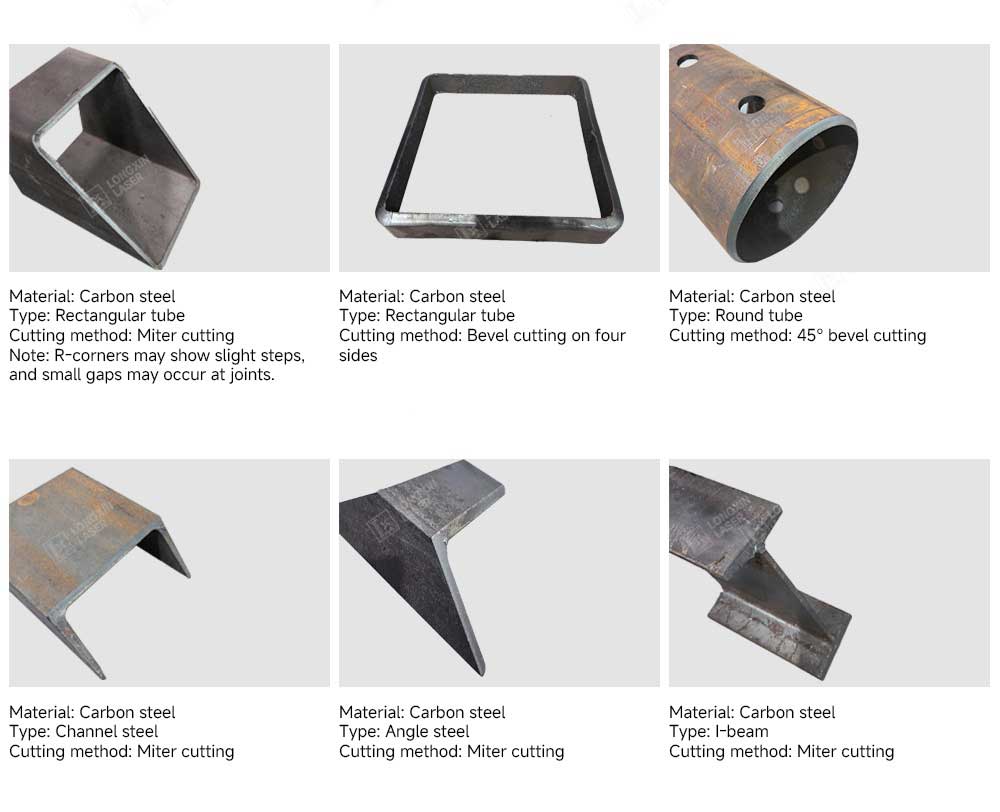

Previously, this required a secondary process—manual grinding or milling—which increased labor costs and the risk of human error. A 3D beveling laser tube cutter solves this by utilizing a 5-axis cutting head (swing head) that can tilt up to ±45 degrees. This allows for the precise creation of various bevel types during the initial cutting process:

• V-Grooves & Y-Grooves: Ideal for standard butt welds.

• K-Grooves & X-Grooves: Essential for thick-walled tubes requiring welding from both sides.

• Countersinking: For seamless screw fit-ups.

Key Benefits of 3D Beveling Laser Technology

Investing in a laser tube cutter for welding prep offers immediate ROI (Return on Investment) for fabricators:

1. Elimination of Secondary Processes :
   By delivering a finished part ready for welding right off the machine, you save significant time and floor space.


2. Zero-Gap Fit-Up Accuracy :
   High-precision laser beams ensure that when tubes are assembled (e.g., in truss structures), the fit is perfect. This reduces the amount of welding wire needed and speeds up the welding process.


3. Versatility Across Materials :
   Whether you are processing carbon steel, stainless steel, or aluminum, advanced 3D fiber laser cutters adapt to various thicknesses and profiles, including round, square, and rectangular tubes.



Choosing the Right Machine for Your Shop

When sourcing a 3D beveling laser tube cutter, pay attention to the cutting head technology and software capabilities.

• Nesting Software: Ensure the machine comes with 3D nesting software (like Lantek or SigmaTube) that can automatically generate bevel paths to minimize material waste.


• Power Source: For effective beveling on thick materials, a higher power laser source (3kW - 12kW+) is recommended to maintain cut quality at angled positions.

The transition from manual edge prep to automated 3D beveling laser tube cutting is a necessity for fabricators aiming to stay ahead. It not only streamlines the workflow for welding prep but also enhances the final product quality.
