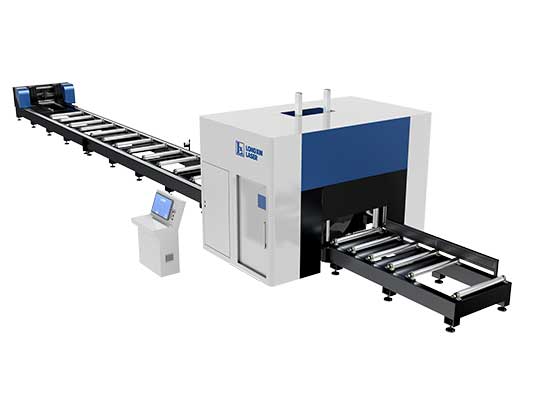

The LX-H100 Smart Laser Cutter is an advanced heavy-duty fiber laser cutting system engineered specifically for processing extra-large tubes and industrial structural profiles
Key Highlights & Competitive Advantages
Ultra-Large Processing Range: Accommodates round tubes up to $\varnothing 1000\text{ mm}$ and square tubes up to $850 \times 850\text{ mm}$
High-Power Fiber Laser Options: Supports laser power outputs from 6000W to 20,000W for efficient thick-wall metal cutting
Integrated Bevel Cutting: Features a 3D bevel-cutting head ($A$-axis travel $\pm 45^\circ$, $B$-axis $\pm 360^\circ$) to eliminate secondary edge-preparation processes prior to welding
Heavy Payload Capacity: Supports a single-tube loading capacity up to 5 tons and loading lengths up to 12,000 mm
Self-Manufactured Heavy-Duty Bed: Built with high-rigidity L-type welded steel frames that undergo high-temperature annealing and precision gantry milling to ensure long-term structural stability
Smart Software Integration: Equipped with BOCHU TubePro cutting software and Tubest nesting software, featuring automatic 4-side center calibration, leapfrog maneuvers, and real-time process monitoring
Core Applications & Target Industries
The LX-H100 heavy-duty tube laser cutting equipment is optimized for high-volume metal fabrication across demanding industries
Steel Construction & Infrastructure: Structural steel framing, trusses, and bridge construction components
Heavy Machinery Manufacturing: Crane booms, mining machinery chassis, and agricultural equipment frames
Pipe & Vessel Fabrication: Heavy industrial piping, offshore platforms, and large pressure-vessel supports
Laser Job Shops: High-mix, high-capacity contract metal cutting services requiring wide profile versatility
Item | Parameter |
Tube processing range | Round tubes: ∅150–1000 mm Square tubes: □150 × 150–850 × 850 mm I-beams and H-beams Channel steel: 10#-85# |
X/Y-axis positioning accuracy | ±0.05 mm / 1000 mm |
X/Y-axis repeat positioning accuracy | ±0.05 mm |
Maximum X-axis travel | 1050mm |
Maximum Y-axis travel | 13920m |
Maximum Z-axis travel | 700mm |
Maximum B-axis travel | ±360° |
Maximum A-axis travel | ±45° |
Maximum acceleration | 0.2G |
Minimum clamping wall thickness | ≥5.0 mm |
Maximum single-tube load capacity | ≤5T |
Loading method | Manual loading |
Loading length | 12000 mm |
Host size (L X W X H) | ≈23195*4135*4000 mm |
Weight | ≈13.5T |
Q: What materials can the LX-H100 cut?
A: The system cuts carbon steel, stainless steel, aluminum alloy tubes, and structural steel profiles including channel steel, I-beams, and H-beams
Q: Does the LX-H100 require specialized foundation preparation?
A: Yes, foundation pits beneath the rotary laser unit (approx. 3600 x 2250 x 1500 mm) lower the machine's center of gravity to optimize cutting stability for 5-ton payloads
Q: What is the benefit of the in-house manufactured machine bed?
A: Longxin's in-house manufacturing process provides strict quality control (<0.5% defect rate) and structural customization while reducing long-term maintenance costs
