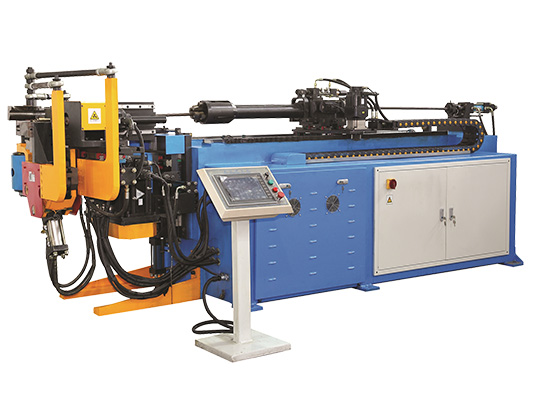

CNC automatic hydraulic bending machine

Share
  • Video
  • Description
  • Parameter
  • Sample
  • FAQ

1. Interactive PLC touch screen offers easy access to auto and manual operating modes.

2. System diagnostics and multiple language capability.

3. Standard clockwise bending direction.

4. Fully hydraulic clamping on clamp die and pressure die.

5. Drop-way hydraulic clamping.

6. Direct acting hydraulic pressure die with adjustable speed valve.

7. Maximum 100 sets of program storage,Maximum 32 bends for each program.

8. With Independent programmable speeds Y, B, and C axes.

9. Programmable material spring back settings for each bend angle.

10. Automatic release of tube prior to final bend.

11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

13. Foot Pedal Cycle start.

14. With Air Cooling System.

15. One set of Tooling for Draw Bending.

16. Wiper die Bracket.

17. 1 Mandrel Rod.

18. Operation and Maintenance Manual.

19. Tool Box with Adjusted Tools.

20. Electric: As required (3 phase 220V or 380V or 415V...)

Item/modelLX25CNCLX38CNCLX50CNCLX75CNCLX89CNCLX114CNC
Maximum bending capacity25mm*2mm38m*2mm50mm*2mm75mm*2mm89mm*3mm114mm*5
Radius of the maximum elbow150mm200mm280mm300mm350mm500mm
Maximum wear effective distance1200mm2200mm2200mm2600mm2600mm4000mm
Maximum bending Angle190°190°190°190°190°190°
Bending speed250°110°100°100°30°24°
Power of the motor2KW4KW5.5KW7.5KW11KW18.5KW
