LX-K9 Zero Tailing Laser Tube Cutting Machine: Fast, Accurate & Zero-Waste

The LX-K9 is a high-speed CNC fiber laser tube cutting machine designed for cutting round, square, and shaped metal profiles with unmatched material efficiency. Equipped with a high-precision dual-pneumatic chuck avoidance system and the LONX customized BOCHU EtherCAT bus system, the LX-K9 achieves zero tailing (residual waste ≥0mm), helping fabricators drastically cut raw material costs and optimize batch production

Key Advantages & Selling Points of the LX-K9

1.True Zero-Tailing Technology (≥0mm Residual Tail)

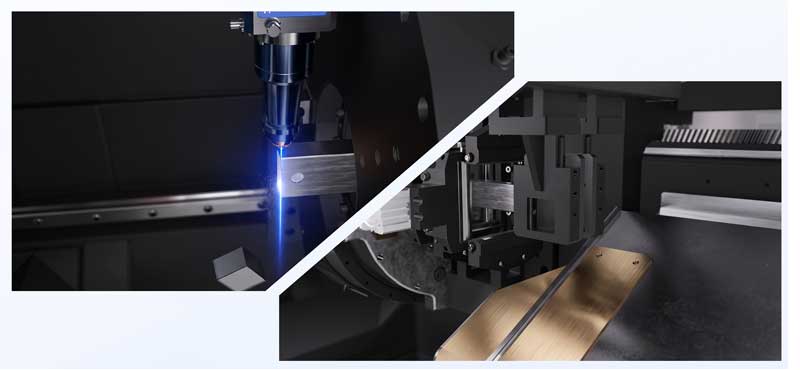

• Intelligent Chuck Avoidance: During tail-cutting, the movable front chuck performs smart avoidance, clamps the tube, and pulls it out from the rear chuck to achieve zero-tail cutting (residual tail length ≥0mm).

• Maximum Material Savings: Minimizes scrap per tube, significantly improving yield rates and lowering raw metal expenses in volume processing.

• High Nesting Efficiency: Achieves optimal zero-tail cutting performance for finished workpiece lengths between 650mm and 1500mm.



2.High Dynamics & Extreme Cutting Speed (Up to 3.0G Acceleration)

• Rapid Cycle Times: Delivers up to 3.0G acceleration on the X-axis and 2.0G on the Y-axis, drastically reducing non-cutting transit time.

• 230 r/min Full-Stroke Chucks: High-speed 100x100mm square-hole pneumatic chucks clamp tubes firmly and rotate up to 230 r/min for thin- and medium-wall tubes.

• Micro-Level Positioning: Achieves X/Y-axis positioning accuracy of ±0.05 mm/1000mm and repeat positioning accuracy of ±0.05 mm.

4.Modular Automation & Flexible Loading Systems

• Semi-Automatic Loading: Supports multi-tube pre-staging for fast manual-assisted feeding (tube diameter: 15-90mm, tube length: 4500-6500mm).

• Fully Automatic Bundle Loading: Handles bundled tube loading up to 1.8 tons per batch with automatic separation and feeding (tube diameter: 20-90mm, length: 4500-6500mm).

• Fully Servo-Driven Loading: Servo-controlled precision feeding and sorting for continuous automated factory lines.

• Versatile Unloading Units: Available with standard inclined unloading plates, 1m/2.3m servo follow-up receiving tables, or pneumatic roller unloading systems to prevent part deformation and surface scratches.

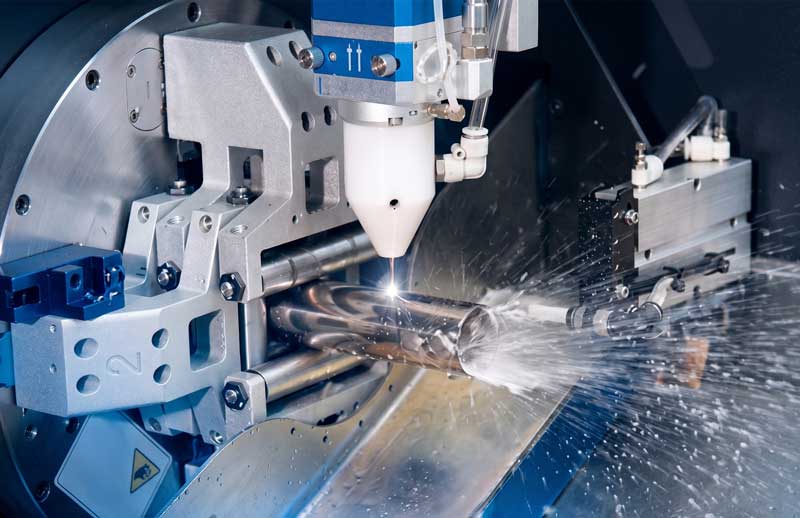

5.Slag-Free & Slag-Removal Clean Cutting (Optional)

• Fluid-Assisted Slag-Free System: Uses a dedicated waterproof chuck and circulating cutting fluid to prevent molten spatter from sticking to the inner wall (applicable to tubes 20-60mm, length ≤800mm), eliminating secondary deburring.

• Servo Single-Tube Slag Removal: Mechanically cleans molten slag on tubes with inner diameter ≥40mm and length ≤800mm.

•

6.Rigid Heavy-Duty Bed & Intelligent Bus Control

• Annealed L-Shaped Machine Bed: Welded from high-grade steel and treated with high-temperature annealing and secondary stress relief, precision-machined by a gantry milling machine for long-term vibration resistance.

• LONX Customized BOCHU CNC Bus System: Integrates EtherCAT bus communication, dynamic pipe center calibration, four-sided centering, leapfrog motion, weld seam compensation, and co-edge cutting.

• Digital Management Platform: Integrates with the "My Machine Tool" system for real-time equipment status tracking, production logs, alarm warnings, and cutting parameter optimization.

7.Target Industry Applications

• School & Office Furniture: Metal desks, ergonomic chair tubes, shelving, and display racks.

• Fitness & Sports Equipment: Treadmill structures, weight racks, and outdoor gym components.

• Automotive & Hardware Fabrication: Vehicle frames, hardware brackets, sanitary ware, and commercial pipe products.

• Construction Machinery & Pipeline Fabrication: Custom tubular frameworks, metal railing systems, and structural conduit assemblies

Frequently Asked Questions

What is a short tail laser tube cutting machine?

A short tail laser tube cutting machine is designed to minimize the remaining unprocessed tube length after cutting. Compared with traditional tube laser cutters, it significantly reduces material waste and improves production efficiency.

Why is short tail cutting important?

Short tail cutting maximizes raw material utilization, lowers production costs, and increases profitability, especially for high-volume tube processing manufacturers.

What tube shapes can the K9 process?

The K9 can cut round, square, rectangular, oval, angle steel, channel steel, H-beams, I-beams, T-profiles, and many custom metal profiles.

Can the K9 support automatic loading?

Yes. The K9 can be equipped with an automatic loading system for continuous, high-efficiency production.

Which industries use the K9?

The K9 is widely used in steel structures, automotive manufacturing, furniture, fitness equipment, construction machinery, agricultural machinery, shipbuilding, and general metal fabrication.
